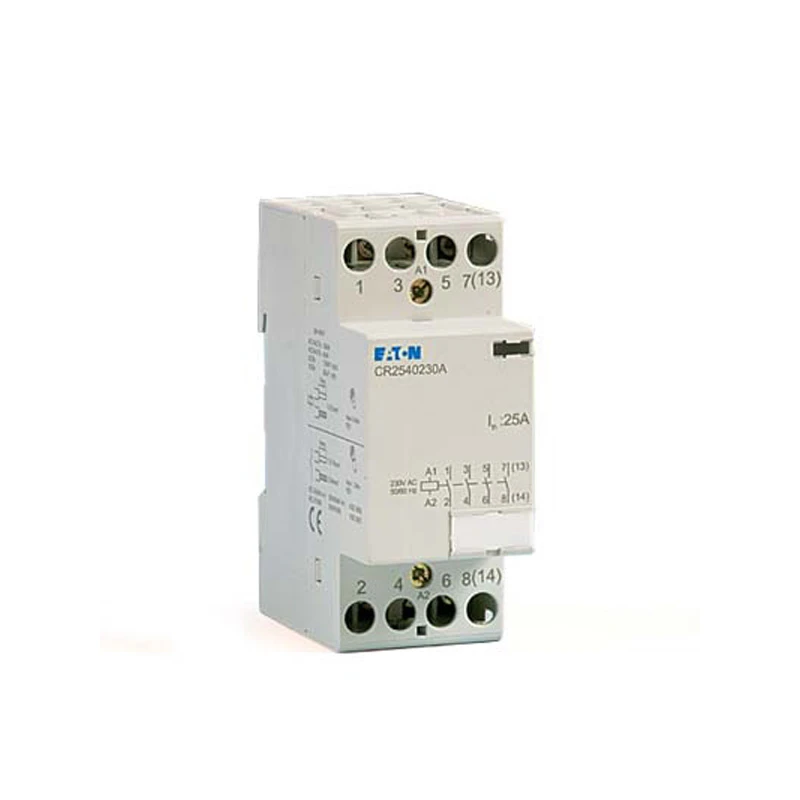

Contactor Modular 4 Normally Open 25A 230V AC
Contactor Modular 4 Normally Open 25A 230V AC
Contactor Modular 4 Normally Open 25A 230V AC - Image 2
Contactor Modular 4 Normally Open 25A 230V AC - Image 3

Contactor Modular 4 Normally Open 25A 230V AC

£66.76 Incl. VAT

Installation contactor, rated control circuit voltage 230V AC, rated operational current at AC1 25A, function: 4NO, details according to IEC/EN 61095, IEC/EN 60947-4-1, standard front dimension 45 mm, mounting width 2 MU, top-hat rail mounting · · · 4 NO Contacts · · 30 to +80 °C storage temperature range · · IEC 60947-4-1, IEC 61095 standard · · 230V · · 9 KW · · Vibration resistance: 2-4gn (open/closed) · · Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · IP20/40 Degree of protection · · Ambient temperature: -25°C to 70°C · · RoHS compliant

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CR2540230A Categories: , , Brand: Part Number: 2500205004

Description

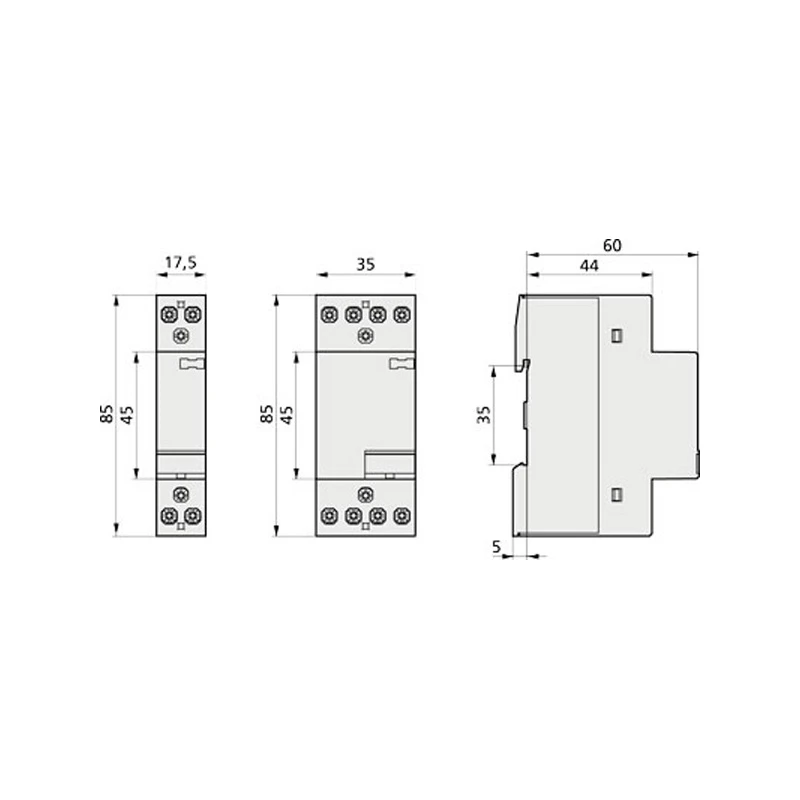

Technical Specifications  Technical Specifications Contactor for distribution board installation Utilization category according to EN IEC 60947-4-1 AC-1 Voltage type (excitation voltage) AC Voltage type (operating voltage) AC Degree of protection (IP rating) IP20 Rated operation current 25 A Max. incandescent lamp load 2200 W Max. load fluorescent lamp (parallel compensated) 400 VA Max. load fluorescent lamp 1200 VA Max. load fluorescent lamp (Duo circuit) 1440 VA Number of contacts as normally closed contact 0 Number of contacts as normally open contact 4 Width in number of modular spacings 2 Recess depth 60 mm Rated operating voltage 400 – 400 V Rated excitation voltage 195.5 – 253 V Additional equipment possible Yes With day/night function No Hum-free No Slider for hand switch No · Technical Data Sheet – Click to Download
