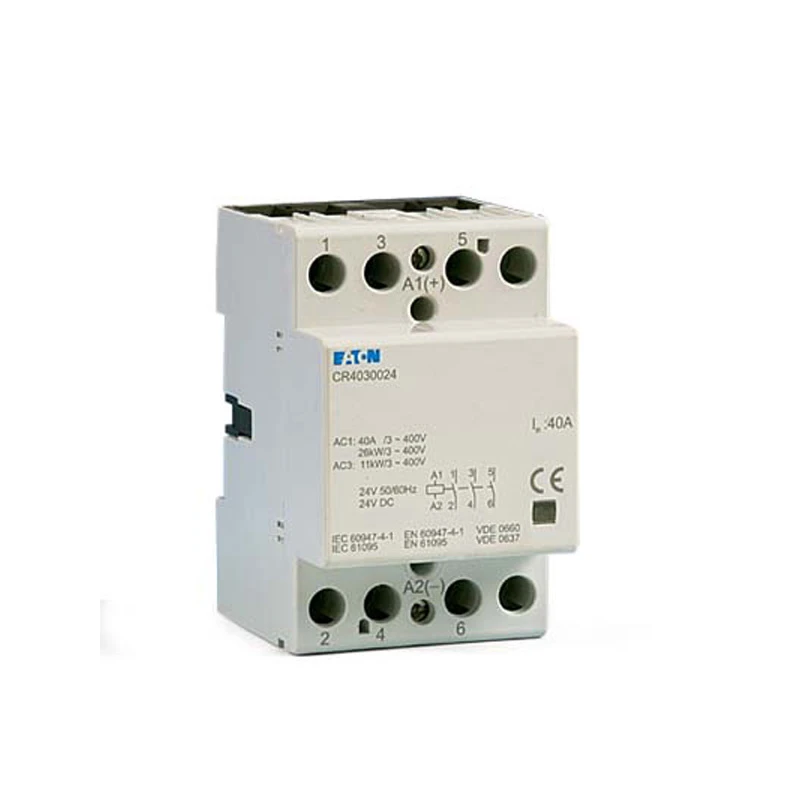

Eaton Contactor Modular 4 Normally Open 40A 230V AC/DC
Eaton Contactor Modular 4 Normally Open 40A 230V AC/DC
Eaton Contactor Modular 4 Normally Open 40A 230V AC/DC - Image 2
Eaton Contactor Modular 4 Normally Open 40A 230V AC/DC - Image 3

Eaton Contactor Modular 4 Normally Open 40A 230V AC/DC

£121.74 Incl. VAT

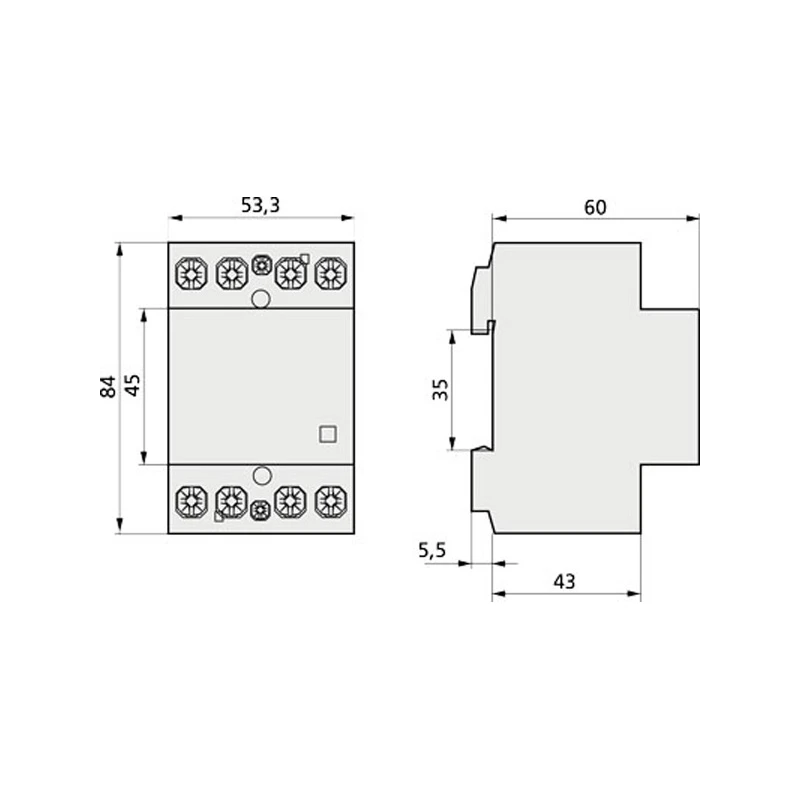

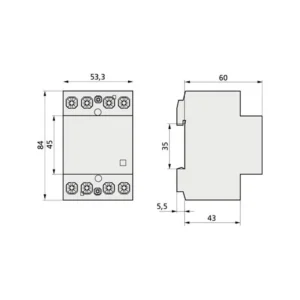

Installation contactor, rated control circuit voltage 230V AC/DC, rated operational current at AC1 40A, function: 4NO, details according to IEC/EN 61095, IEC/EN 60947-4-1, standard front dimension 45 mm, mounting width 3 MU, top-hat rail mounting · · · 4 NO Contacts · · 30 to +80 °C storage temperature range · · IEC 60947-4-1, IEC 61095 standard · · 230V AC/DC · · 16 KW

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CR4040230 Categories: , , , , , Brand: Product Code: 2500205083

Description

Technical Specifications  Technical Specifications Contactor for distribution board installation Utilization category according to EN IEC 60947-4-1 AC-1 Degree of protection (IP rating) IP20 Voltage type (excitation voltage) AC/DC Recess depth 60 mm Width in number of modular spacings 3 Voltage type (operating voltage) AC/DC Rated operation current 40 A Number of contacts as normally open contact 4 Number of contacts as normally closed contact 0 Max. load fluorescent lamp (Duo circuit) 3600 VA Max. load fluorescent lamp (parallel compensated) 2200 VA Max. load fluorescent lamp 2100 VA Max. incandescent lamp load 4004 W Rated operating voltage 400 – 400 V Rated excitation voltage 195.5 – 253 V Slider for hand switch No With day/night function No Additional equipment possible Yes Hum-free Yes · Technical Data Sheet – Click to Download
