Contactor Screw Terminal Triple Pole 1 Normally Open 1Normally Closed 15Kw 110V AC
Contactor Screw Terminal Triple Pole 1 Normally Open 1Normally Closed 15Kw 110V AC
Contactor Screw Terminal Triple Pole 1 Normally Open 1Normally Closed 15Kw 110V AC - Image 2
Contactor Screw Terminal Triple Pole 1 Normally Open 1Normally Closed 15Kw 110V AC - Image 3

Contactor Screw Terminal Triple Pole 1 Normally Open 1Normally Closed 15Kw 110V AC

£125.23 Incl. VAT

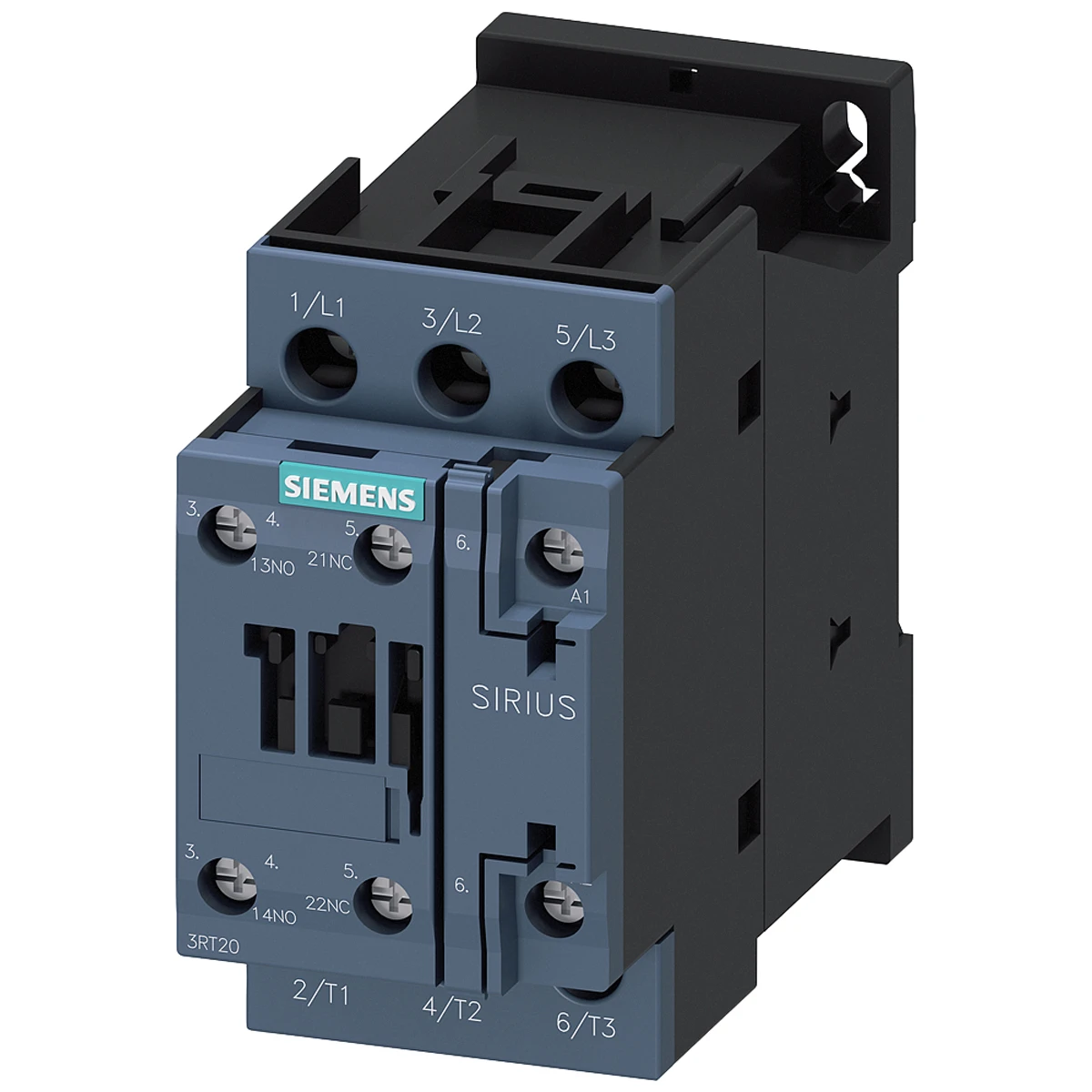

Siemens size S0 power contactor with 1NO + 1NC auxiliary contact. Contactor can be rotated +/-180° and be tilted forward/backward +/- 22.5° when on vertical mounting surface. · · · Control supply voltage: 110V AC · · Operating current: 32A (at 400V rated value) · · Operating power: 15kW (at 400V rated value) · · Screw clamp terminals: 2x (1 – 2.5mm²), 2 x (2.5 – 10mm²) · · Mounting type: Screw/Snap-on mounting onto 35mm standard rail · · Operating voltage: 690V AC · · Opening/closing delay: 4-16ms/ 9-40ms · · Mechanical service life: 10000000 cycles · · Ambient operating temperature: -25°C to 60°C · · IP20 Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3RT2027-1AF00 Categories: , , Brand: Part Number: 1050391911

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Type of electrical connection of main circuit Screw connection Voltage type for actuating AC Rated operation power at AC-3, 400 V 15 kW Number of main contacts as normally open contact 3 Number of auxiliary contacts as normally open contact 1 Rated operation current Ie at AC-3, 400 V 32 A Rated operation power NEMA 14.70998 kW Number of auxiliary contacts as normally closed contact 1 Rated operation current Ie at AC-1, 400 V 50 A Rated operation current Ie at AC-4, 400 V 22 A Rated operation power at AC-4, 400 V 6 kW Rated control supply voltage at AC 50 Hz 110 – 110 V Modular version Yes · Technical Data Sheet – Click to Download
