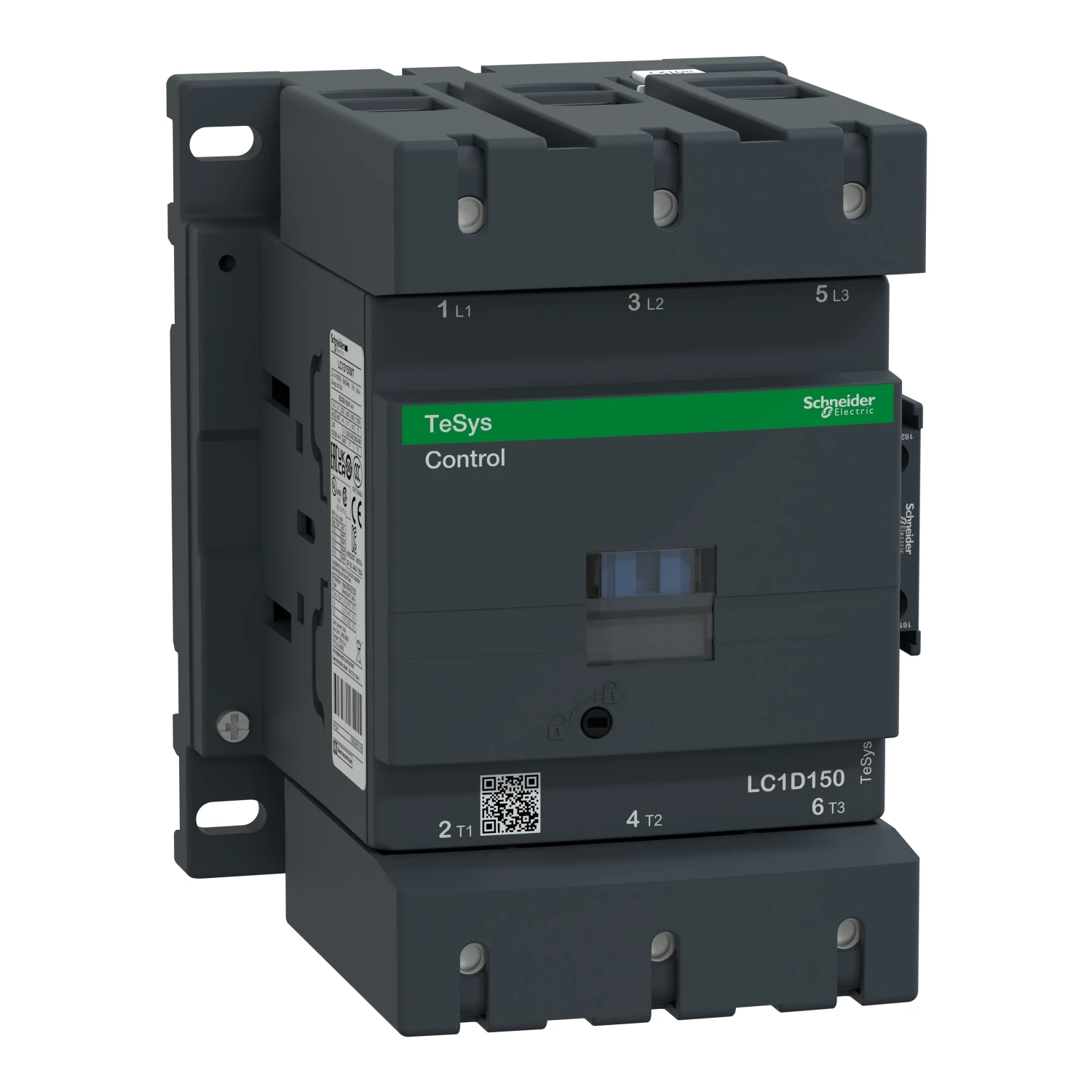

Contactor Triple Pole 1Normally Open+1Normally Closed 110V 50/60Hz

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). It provides a 110V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys D contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). · · Screw clamp terminals: 1 to 2.5mm² · · It provides a 110V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. · · For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (120mm width), mounting on 2 DIN-rails or screw fixing. · · Mechanical durability: 8 Mcycles · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · Tightening torque: 1.2Nm · · Ambient operating temperature: -5°C to 60°C · · IP20 Degree of protection (front face)
