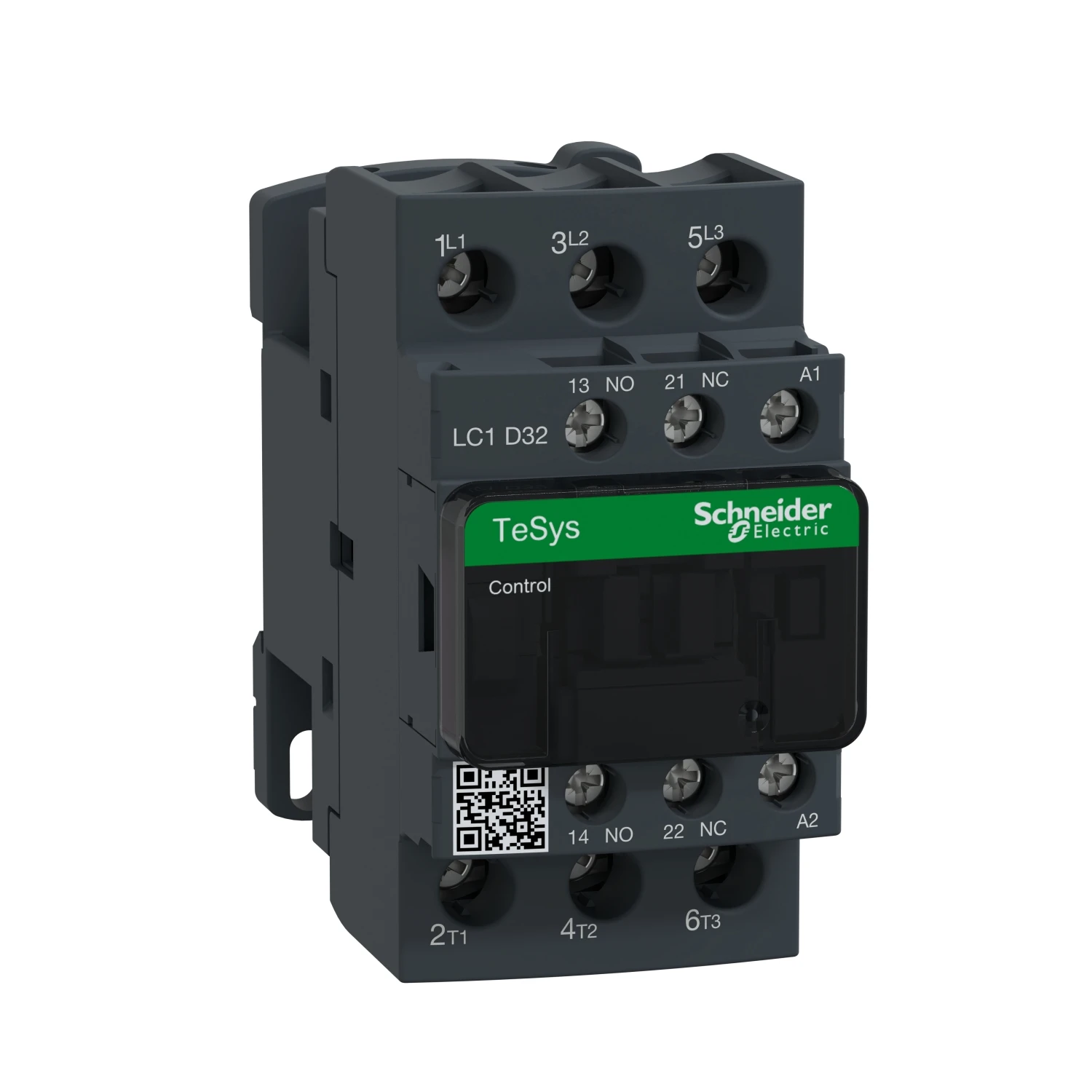

Contactor Triple Pole 1Normally Open+1Normally Closed 110V 50/60Hz
Contactor Triple Pole 1Normally Open+1Normally Closed 110V 50/60Hz
Contactor Triple Pole 1Normally Open+1Normally Closed 110V 50/60Hz - Image 2
Contactor Triple Pole 1Normally Open+1Normally Closed 110V 50/60Hz - Image 3

Contactor Triple Pole 1Normally Open+1Normally Closed 110V 50/60Hz

£135.16 Incl. VAT

TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3 (15kW@400V). · · Screw clamp terminals: 1 to 10mm² · · It provides a 110V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (45mm width), DIN-rail mounting or screw fixing. · · Mechanical durability: 15 Mcycles · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · Tightening torque: 1.7Nm · · Ambient operating temperature: -5°C to 60°C · · IP20 Degree of protection (front face)

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D32F7 Categories: , , Brand: Part Number: 2500091652

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 15 kW Number of auxiliary contacts as normally open contact 1 Number of normally closed contacts as main contact 0 Number of auxiliary contacts as normally closed contact 1 Rated operation current Ie at AC-4, 400 V 18 A Rated operation power at AC-4, 400 V 7.5 kW Rated operation current Ie at AC-1, 400 V 50 A Rated operation power NEMA – kW Rated operation current Ie at AC-3, 400 V 32 A Rated control supply voltage at AC 50 Hz 110 – 110 V Rated control supply voltage at DC – – – V Rated control supply voltage at AC 60 Hz 110 – 110 V Modular version No · Technical Data Sheet – Click to Download
