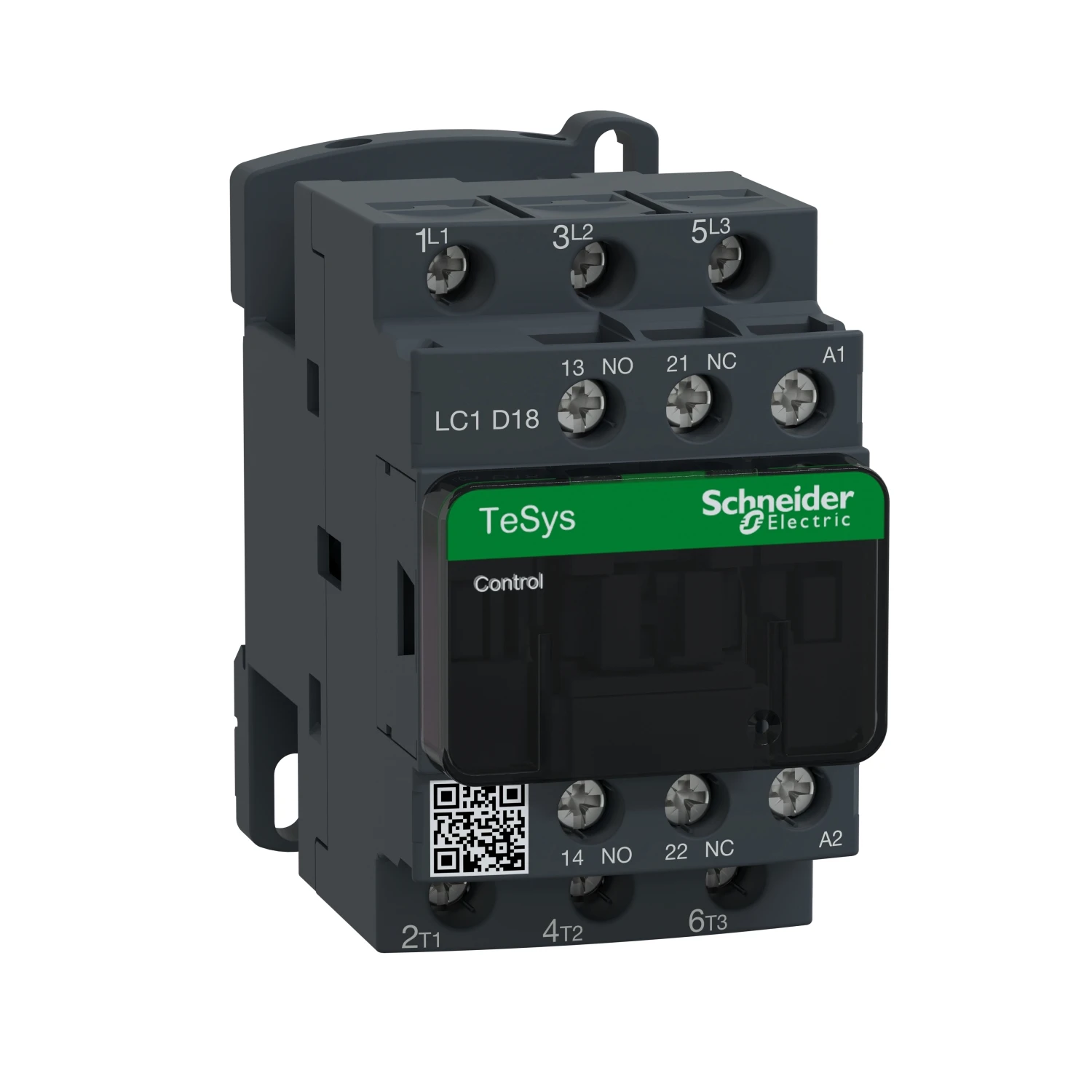

Contactor Triple Pole 1Normally Open+1Normally Closed 18A 24V 50/60Hz
Contactor Triple Pole 1Normally Open+1Normally Closed 18A 24V 50/60Hz
Contactor Triple Pole 1Normally Open+1Normally Closed 18A 24V 50/60Hz - Image 2
Contactor Triple Pole 1Normally Open+1Normally Closed 18A 24V 50/60Hz - Image 3

Contactor Triple Pole 1Normally Open+1Normally Closed 18A 24V 50/60Hz

£72.37 Incl. VAT

TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · Manufactured in accordance with EN60947-4-1 · · Up to 80% lower consumption · · Formerly named TeSys D Contactor · · 45mm wide · · Includes 1NO and 1NC auxiliary · · Mechanical durability: 15 Mcycles · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · Tightening torque: 1.7Nm · · Ambient operating temperature: -5°C to 60°C · · IP20 Degree of protection (front face)

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D18B7 Categories: , , Brand: Part Number: 2500090922

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Rated operation power at AC-3, 400 V 7.5 kW Number of normally closed contacts as main contact 0 Rated operation current Ie at AC-4, 400 V 9 A Number of main contacts as normally open contact 3 Rated operation power at AC-4, 400 V 4 kW Rated operation current Ie at AC-3, 400 V 18 A Rated operation current Ie at AC-1, 400 V 32 A Number of auxiliary contacts as normally open contact 1 Number of auxiliary contacts as normally closed contact 1 Rated operation power NEMA – kW Rated control supply voltage at DC – – – V Rated control supply voltage at AC 50 Hz 24 – 24 V Rated control supply voltage at AC 60 Hz 24 – 24 V Modular version No · Technical Data Sheet – Click to Download
