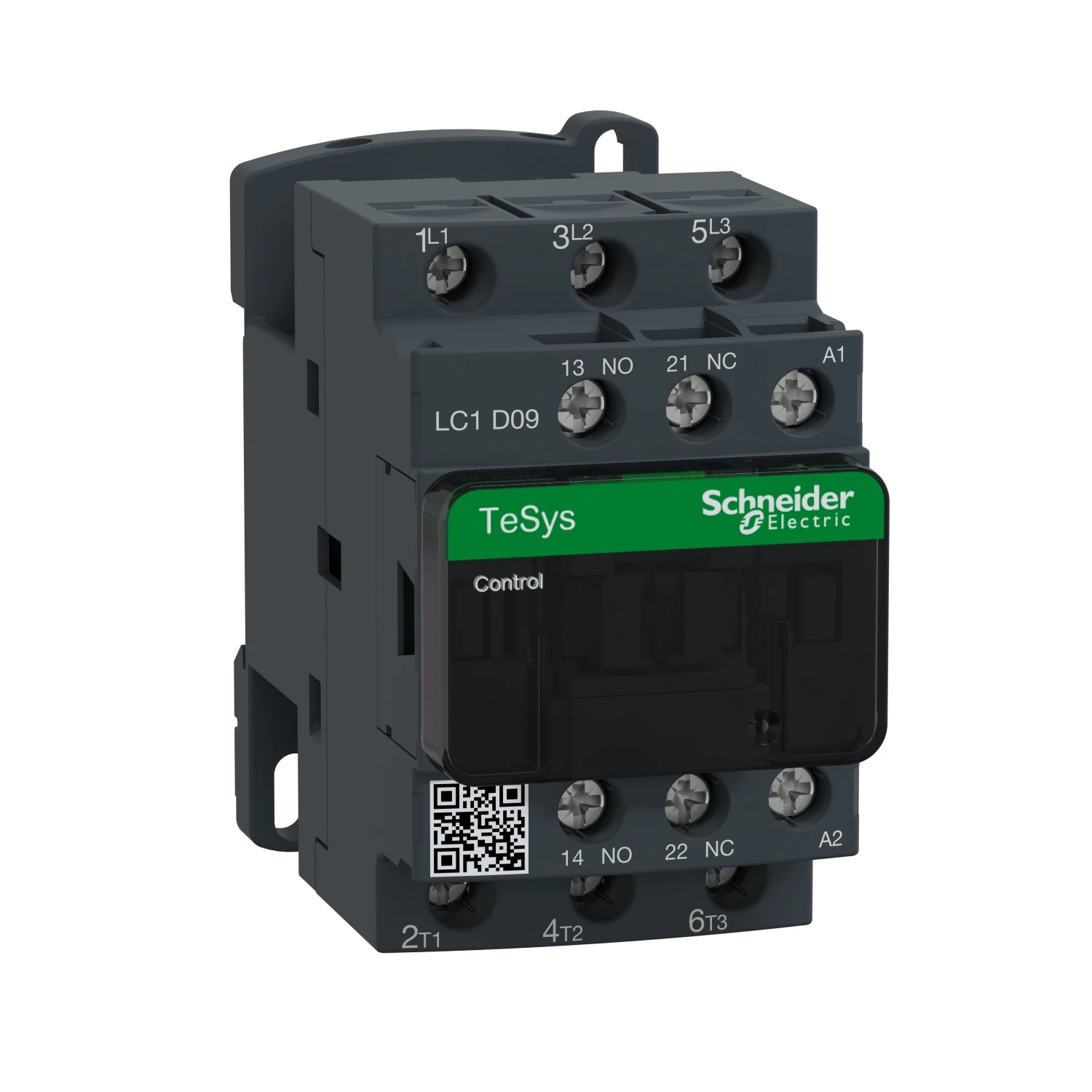

Contactor Triple Pole 1Normally Open+1Normally Closed 9A 230V 50/60Hz
Contactor Triple Pole 1Normally Open+1Normally Closed 9A 230V 50/60Hz
Contactor Triple Pole 1Normally Open+1Normally Closed 9A 230V 50/60Hz - Image 2
Contactor Triple Pole 1Normally Open+1Normally Closed 9A 230V 50/60Hz - Image 3
Contactor Triple Pole 1Normally Open+1Normally Closed 9A 230V 50/60Hz - Image 4

Contactor Triple Pole 1Normally Open+1Normally Closed 9A 230V 50/60Hz

£46.43 Incl. VAT

TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). · · Vibrations contactor closed 4Gn 5 to 300Hz · · It provides a 230V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. · · Compact (45mm width), DIN-rail mounting or screw fixing. · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D09P7 Categories: , , Brand: Part Number: 2500089553

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0 Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 4 kW Number of auxiliary contacts as normally open contact 1 Rated operation power NEMA – kW Rated operation current Ie at AC-4, 400 V 6 A Rated operation power at AC-4, 400 V 2.2 kW Rated operation current Ie at AC-3, 400 V 9 A Rated operation current Ie at AC-1, 400 V 25 A Number of auxiliary contacts as normally closed contact 1 Rated control supply voltage at DC – – – V Rated control supply voltage at AC 50 Hz 230 – 230 V Rated control supply voltage at AC 60 Hz 230 – 230 V Modular version No · Technical Data Sheet – Click to Download
