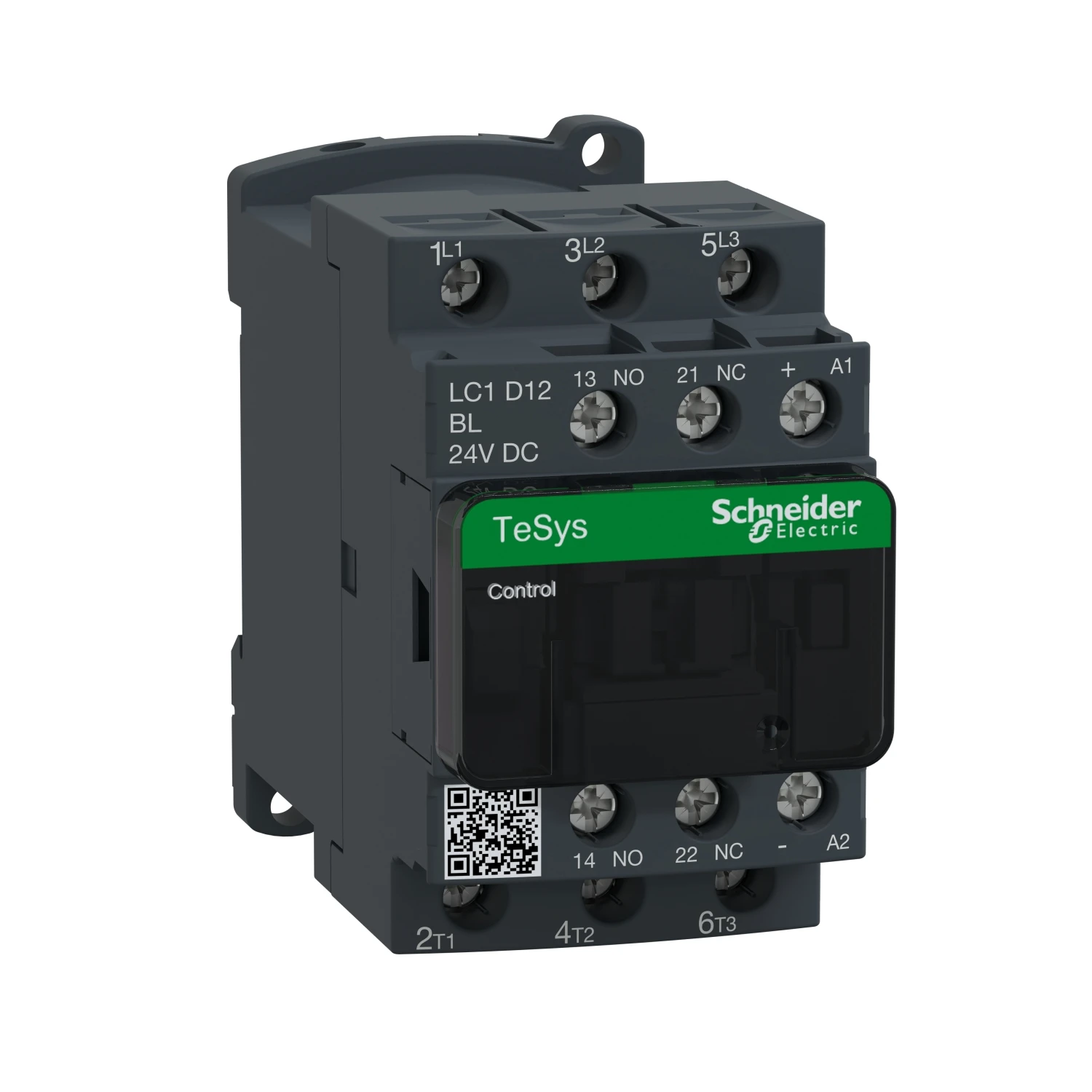

Contactor Triple Pole 1Normally Open+1Normally Closed Suppres Fit 12A 24V DC
Contactor Triple Pole 1Normally Open+1Normally Closed Suppres Fit 12A 24V DC
Contactor Triple Pole 1Normally Open+1Normally Closed Suppres Fit 12A 24V DC - Image 2
Contactor Triple Pole 1Normally Open+1Normally Closed Suppres Fit 12A 24V DC - Image 3

Contactor Triple Pole 1Normally Open+1Normally Closed Suppres Fit 12A 24V DC

£75.08 Incl. VAT

TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). · · Height: 77mm, Width: 45mm, Depth: 95mm · · It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. · · For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. · · Compact (45mm width), DIN-rail mounting or screw fixing. · · Voltage Rating: 24V DC · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · IP Rating: IP2X · · CE: yes

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LC1D12BL Categories: , , Brand: Part Number: 2500089624

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Number of normally closed contacts as main contact 0 Rated operation power at AC-3, 400 V 5.5 kW Number of main contacts as normally open contact 3 Rated operation power NEMA – kW Number of auxiliary contacts as normally open contact 1 Rated operation current Ie at AC-4, 400 V 7.5 A Number of auxiliary contacts as normally closed contact 1 Rated operation power at AC-4, 400 V 3 kW Rated operation current Ie at AC-1, 400 V 25 A Rated operation current Ie at AC-3, 400 V 12 A Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at AC 60 Hz – – – V Rated control supply voltage at DC 24 – 24 V Modular version No · Technical Data Sheet – Click to Download
