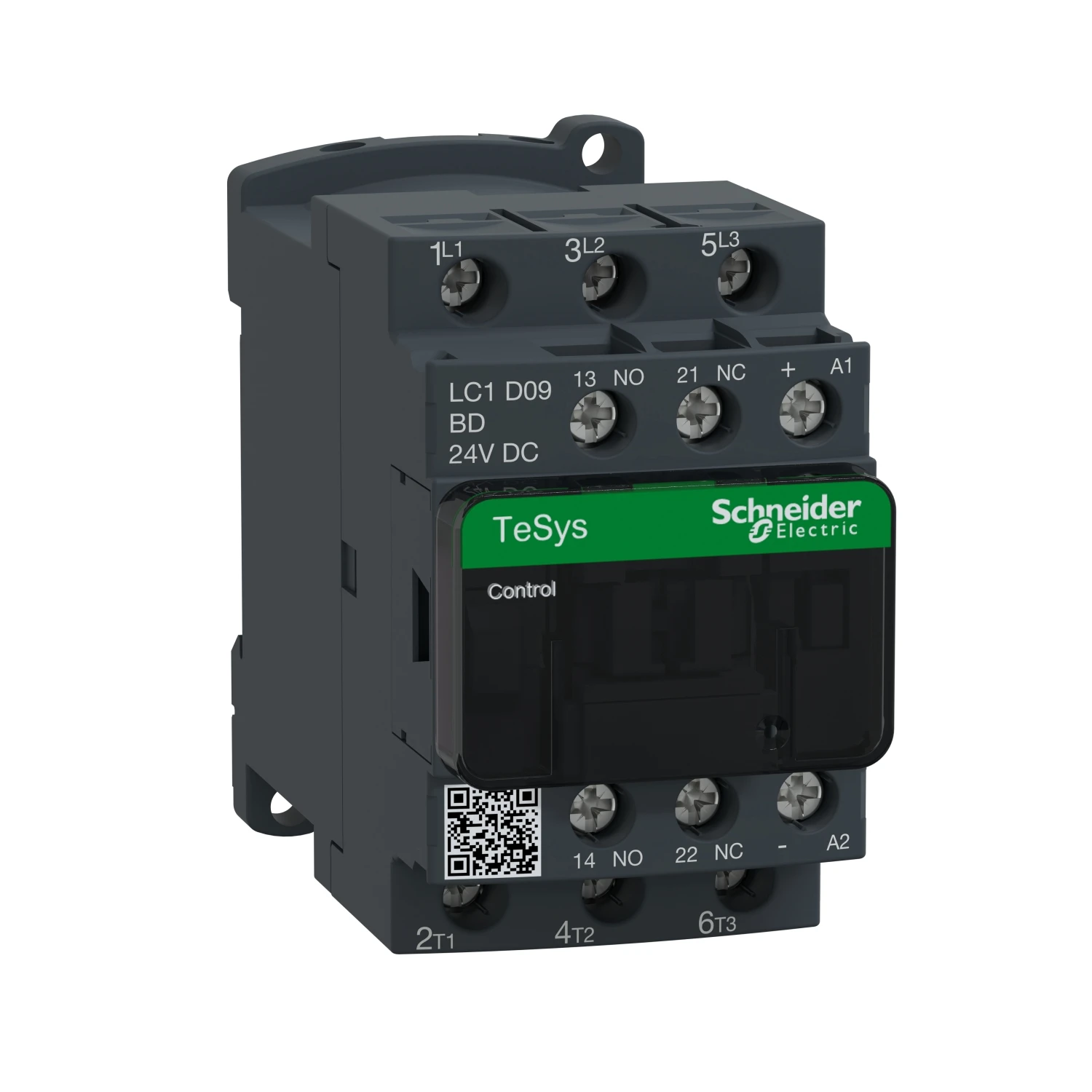

Contactor Triple Pole 1Normally Open+1Normally Closed Wide Range 9A 24V DC
£91.46 Incl. VAT
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · Only 45mm wide, from 9A up to 150A. · · Separation of control and power circuits. · · AC, DC and DC low consumption available with suppression and wide range coil as standard. · · Choice of screw, spring or ring terminal or faston connections. · · Encapsulated power and control connections for reversing and star/delta starters. · · AC plug-in coil suppressor. · · Uses new magnet technology for increased performance with reduced physical size. · · Type 2 co-ordination with fuses or motor circuit breakers. · · 5 year warranty. · · IP20 Degree of protection (front face)
Out of stock
Description
Technical Specifications Technical Specifications Power contactor, AC switching Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 4 kW Number of normally closed contacts as main contact 0 Number of auxiliary contacts as normally closed contact 1 Rated operation power NEMA – kW Number of auxiliary contacts as normally open contact 1 Rated operation current Ie at AC-4, 400 V 6 A Rated operation power at AC-4, 400 V 2.2 kW Rated operation current Ie at AC-1, 400 V 25 A Rated operation current Ie at AC-3, 400 V 9 A Rated control supply voltage at DC 24 – 24 V Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at AC 60 Hz – – – V Modular version No · Technical Data Sheet – Click to Download
