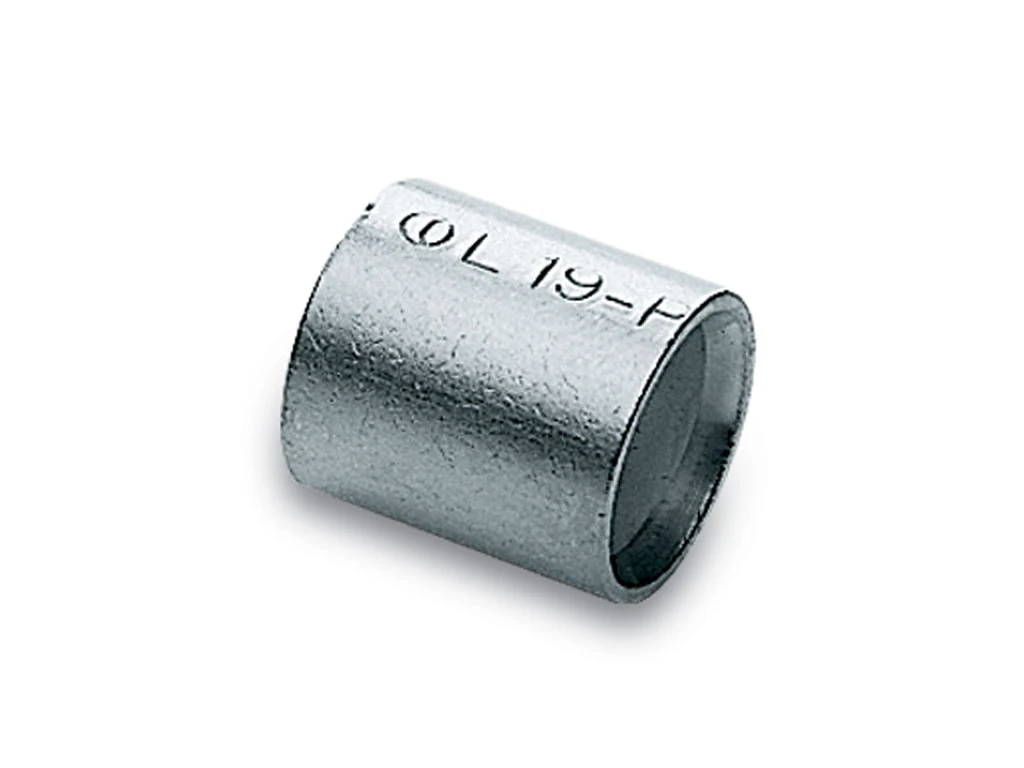

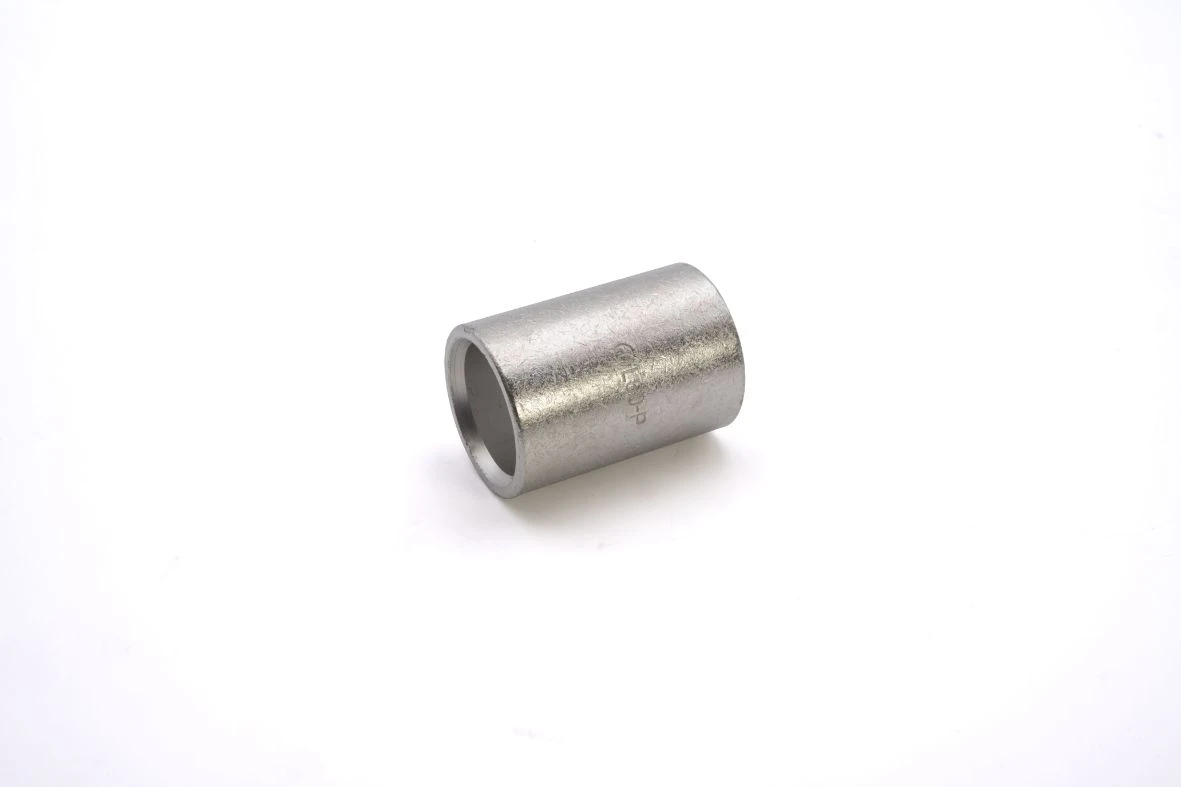

Copper Through Connector 4mm²-6mm² Copper parallel connector [Pack of 100]
Copper Through Connector 4mm²-6mm² Copper parallel connector [Pack of 100]
Copper Through Connector 4mm²-6mm² Copper parallel connector [Pack of 100] - Image 2
Copper Through Connector 4mm²-6mm² Copper parallel connector [Pack of 100] - Image 3
Copper Through Connector 4mm²-6mm² Copper parallel connector [Pack of 100] - Image 4

Copper Through Connector 4mm²-6mm² Copper parallel connector [Pack of 100]

£0.16 Incl. VAT

4mm²-6mm² Copper tube parallel connector · · · Annealed to guarantee optimum ductility · · Facilitated introduction of the conductor · · -50°C to +150°C Temperature Range · · Maximum Voltage Rating: 11kV · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Diameter: 3.6 mm · · CE Approved: Y

500 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: L1-P Categories: , , Brand: Part Number: 2500111279

Description

Technical Specifications  Technical Specifications Crimp splices for copper conductor Voltage row Up to 600 V Sleeve form Short Insulation None Type of connection Parallel connector Material Copper Surface protection Tinned Model Standard version Number of branches – Nominal cross section 4 – 6 mm² Nominal current – A AWG-range 12 – 10 For pull protected connections No Suitable for solid cores No Suitable for round conductors Yes Suitable for insulated varnish No Useful for stranded conductors Yes Suitable for flat conductors No Suitable for high temperatures (to 650 °C) No Suitable for fine strand conductors Yes Oil stop/centre bar No
