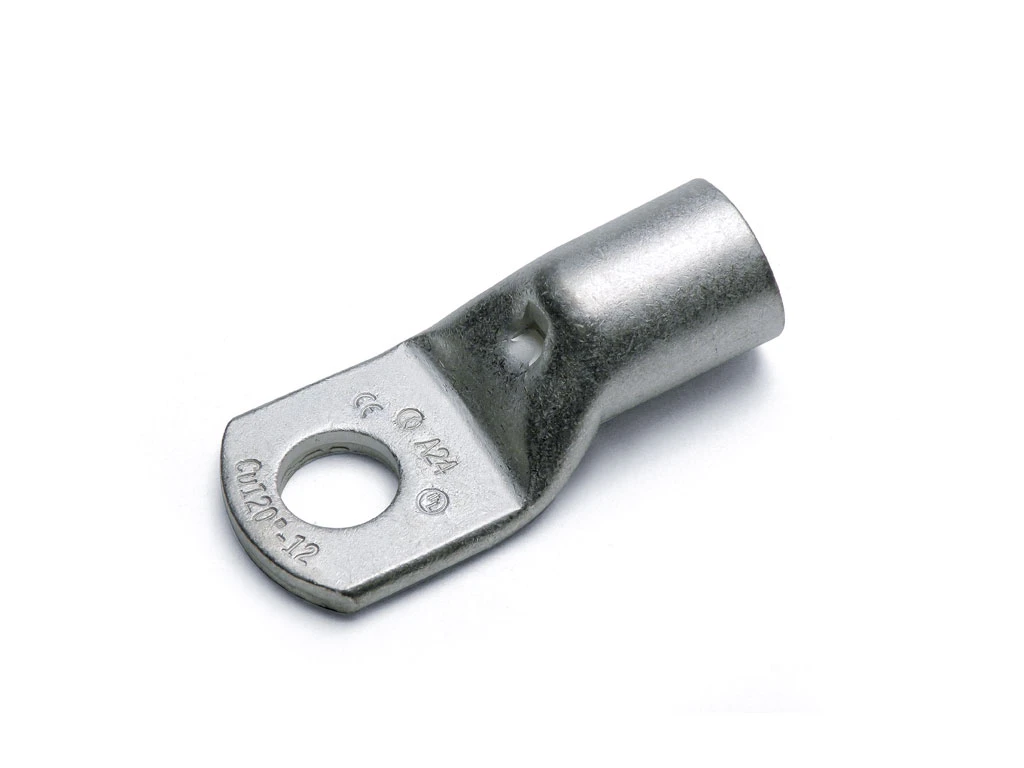

Copper Tube Crimp Lug
Copper Tube Crimp Lug
Copper Tube Crimp Lug - Image 2
Copper Tube Crimp Lug - Image 3

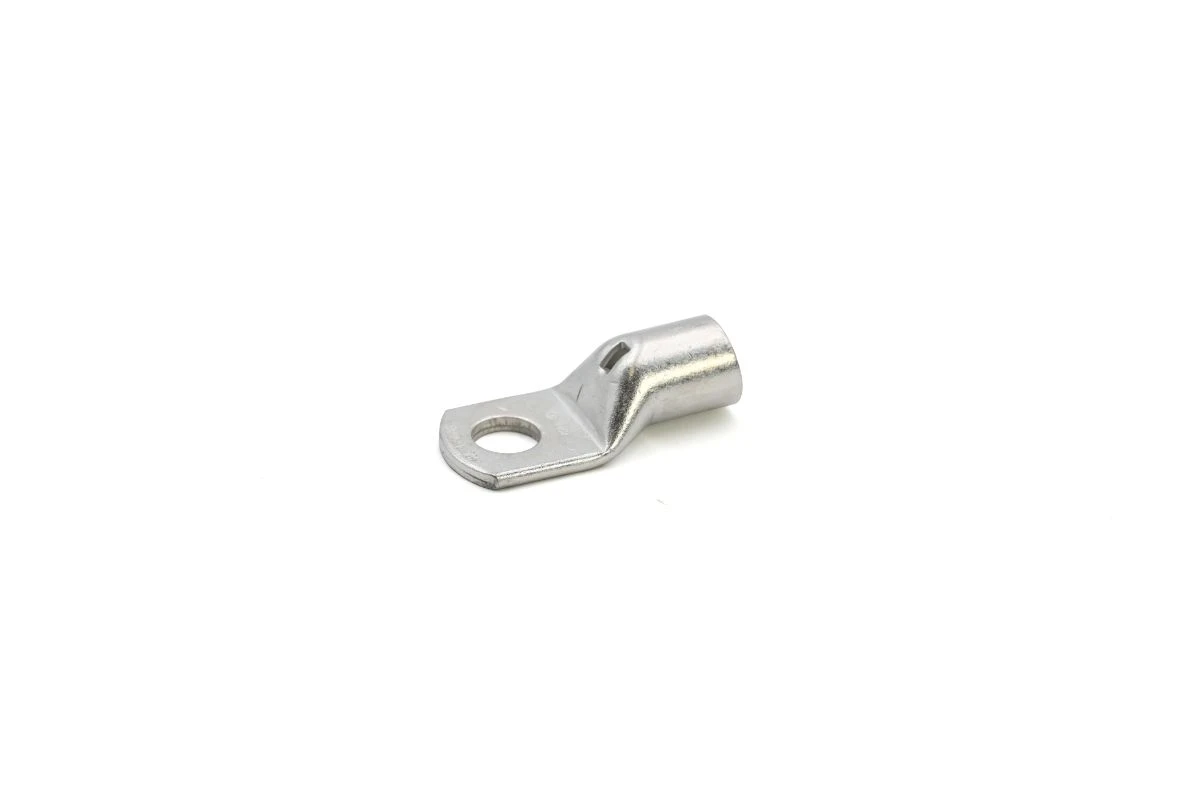

Copper Tube Crimp Lug - Image 4

Copper Tube Crimp Lug

£3.22 Incl. VAT

95mm² Copper tube crimping lug for extra flexible copper conductor M12 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Tab/Pin Size: 26 mm · · Diameter: 15 mm · · Length Min Max: 59 mm · · Width: 27 mm

31 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A20-M12 Categories: , , Brand: Part Number: 2500006080

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Conductor category Class 6 = very flexible Material Copper Surface protection Tinned AWG size 000 Flange shape Ring shape Bolt dimension (metric) 12 Number of fixing holes 1 Nominal cross section 95 mm² Insulated No With sight-hole Yes Slender flange model No
