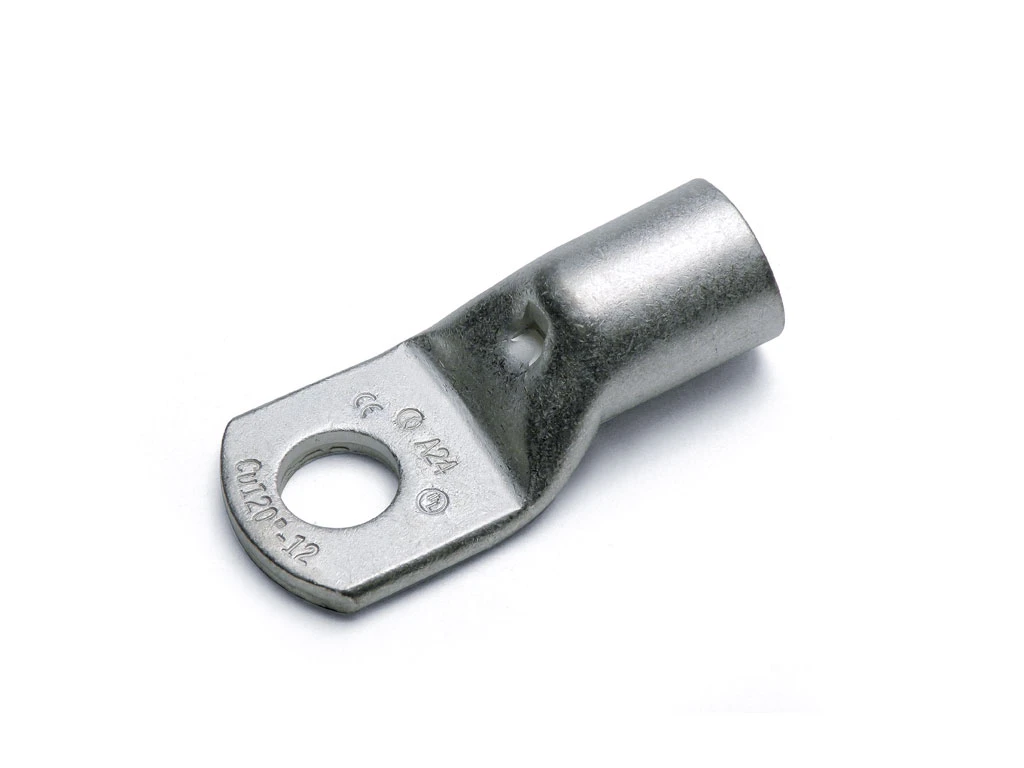

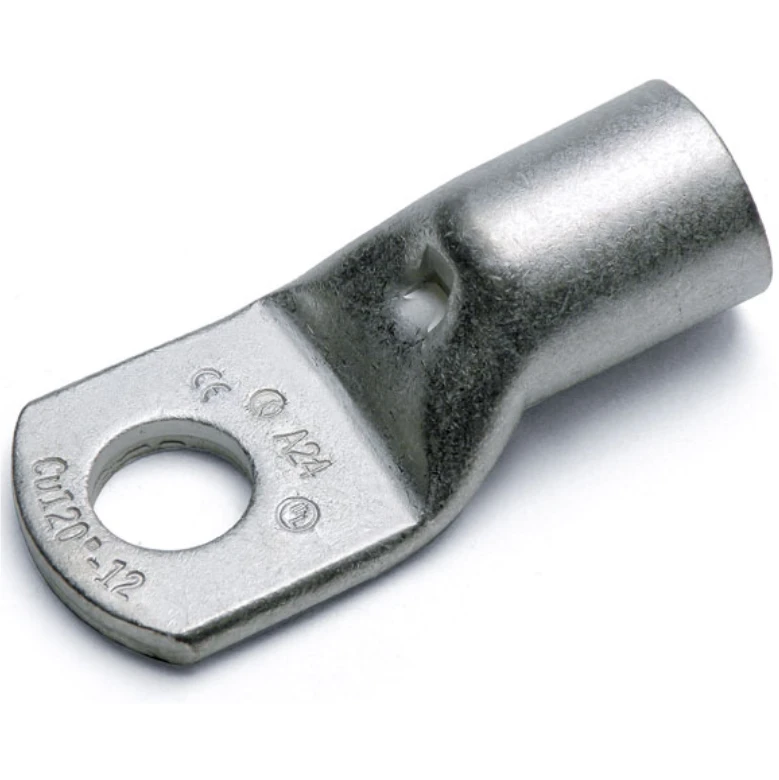

Copper Tube Crimp Lug
Copper Tube Crimp Lug
Copper Tube Crimp Lug - Image 2
Copper Tube Crimp Lug - Image 3
Copper Tube Crimp Lug - Image 4

Copper Tube Crimp Lug

£3.60 Incl. VAT

95mm² Copper tube crimping lug M16 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Tab/Pin Size: 34 mm · · Diameter: 13.5 mm · · Length Min Max: 69.5 mm · · Width: 27 mm

36 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A19-M16 Categories: , , Brand: Part Number: 2500005817

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper Surface protection Tinned Conductor category Class 5 = flexible AWG size 000 Flange shape Ring shape Number of fixing holes 1 Bolt dimension (metric) 16 Nominal cross section 95 mm² Insulated No With sight-hole Yes Slender flange model No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/573509
