Copper Tube Crimp Lug (A3-M5)
Copper Tube Crimp Lug (A3-M5)
Copper Tube Crimp Lug (A3-M5) - Image 2
Copper Tube Crimp Lug (A3-M5) - Image 3
Copper Tube Crimp Lug (A3-M5) - Image 4

Copper Tube Crimp Lug (A3-M5)

£0.52 Incl. VAT

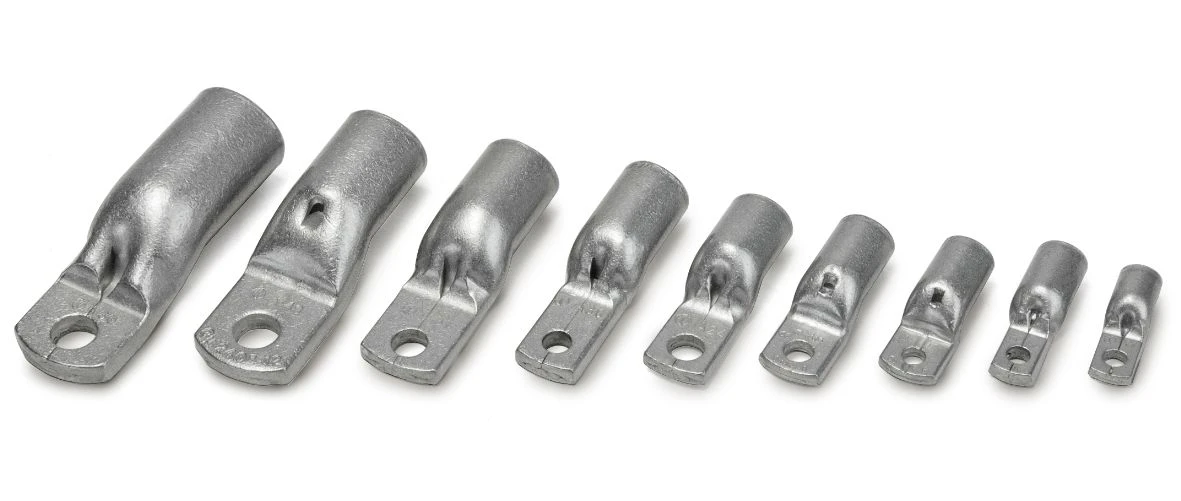

16mm² Copper tube crimping lug M5 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

65 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A3-M5 Categories: , , Brand: Part Number: 2500003101

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper AWG size 6 Conductor category Class 5 = flexible Surface protection Tinned Flange shape Ring shape Number of fixing holes 1 Nominal cross section 16 mm² Bolt dimension (metric) 5 Insulated No With sight-hole Yes Slender flange model No
