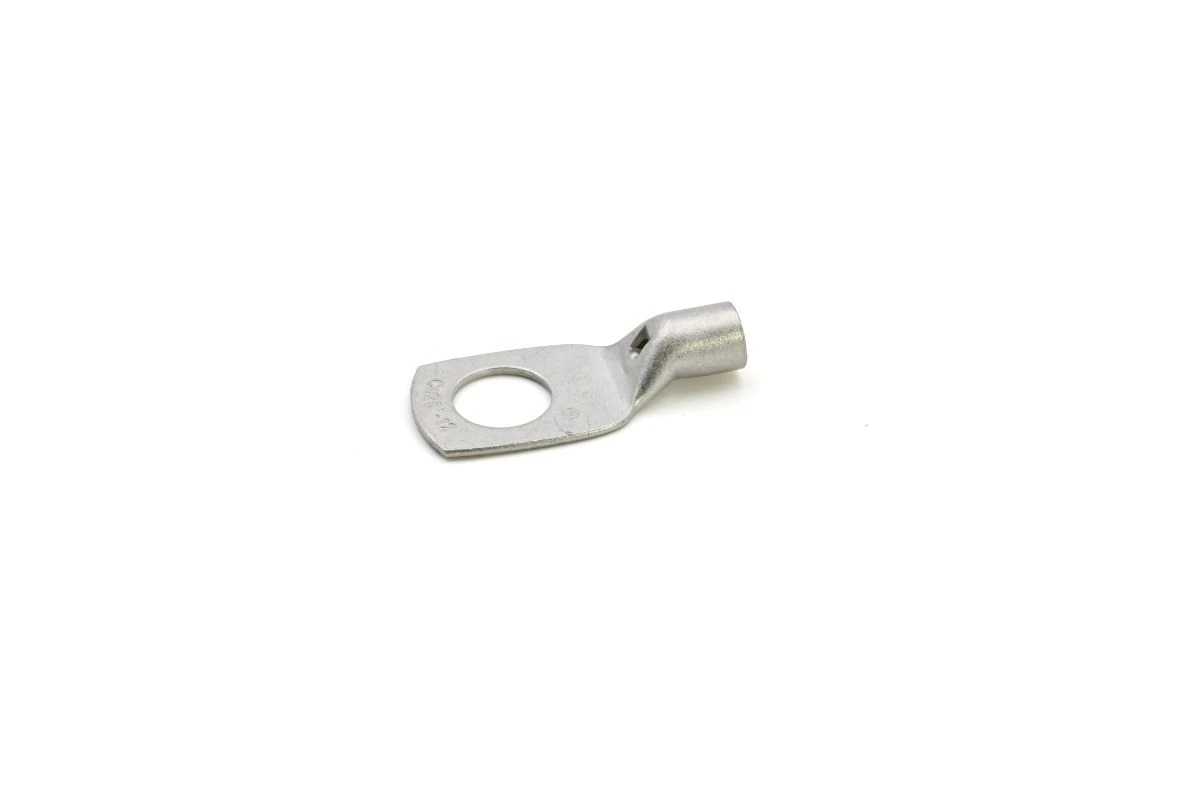

Cembre 25mm² Copper lug M16 stud
Cembre 25mm² Copper lug M16 stud
Cembre 25mm² Copper lug M16 stud - Image 2
Cembre 25mm² Copper lug M16 stud - Image 3
Cembre 25mm² Copper lug M16 stud - Image 4

Cembre 25mm² Copper lug M16 stud

£9.20 Incl. VAT

25mm² Copper tube crimping lug M16 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A5-M16 Categories: , , Brand: Product Code: 2501000748

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper AWG size 4 Surface protection Tinned Flange shape Ring shape Number of fixing holes 1 Bolt dimension (metric) 16 Insulated No With sight-hole Yes Nominal cross section 25 mm² Slender flange model No · Technical Data Sheet – Click to Download
