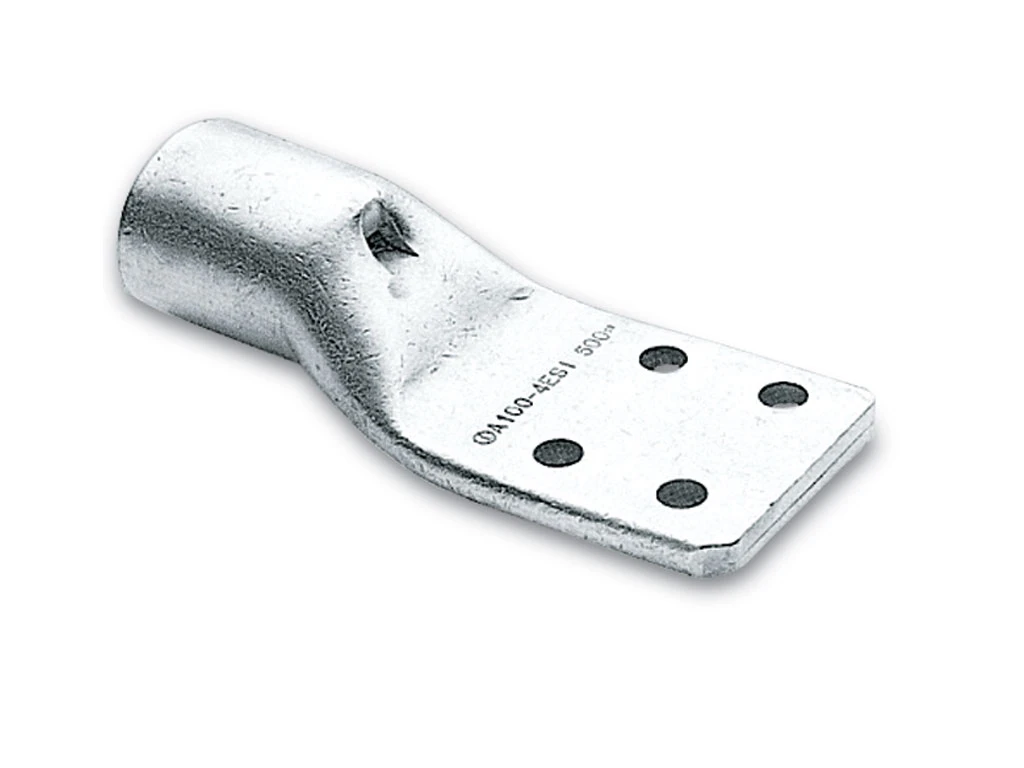

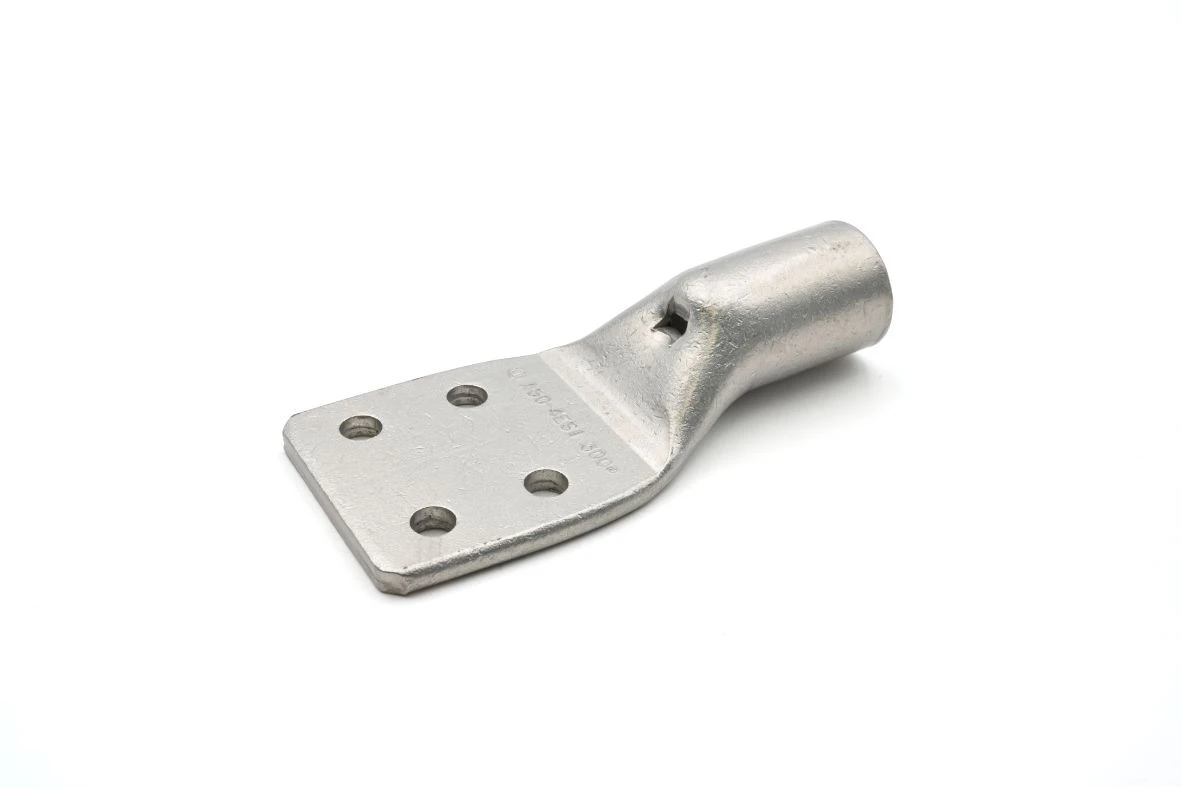

Cembre 300mm² Copper lug 4-ESI fixing [Pack of 5]
Cembre 300mm² Copper lug 4-ESI fixing [Pack of 5]
Cembre 300mm² Copper lug 4-ESI fixing [Pack of 5] - Image 2
Cembre 300mm² Copper lug 4-ESI fixing [Pack of 5] - Image 3
Cembre 300mm² Copper lug 4-ESI fixing [Pack of 5] - Image 4

Cembre 300mm² Copper lug 4-ESI fixing [Pack of 5]

£47.40 Incl. VAT

300mm² Copper tube crimping lug with 4-ESI fixing · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Four hole stud fixing in accordance with EA specifications

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A60-4ESI Categories: , , Brand: Product Code: 2500025512

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper AWG size 600 kcmil Flange shape Special shape Surface protection Tinned Connecting angle 180° (horizontal) Nominal cross section 300 mm² Number of fixing holes 4 Bolt dimension (metric) 8 Insulated No With sight-hole Yes Slender flange model No · Technical Data Sheet – Click to Download
