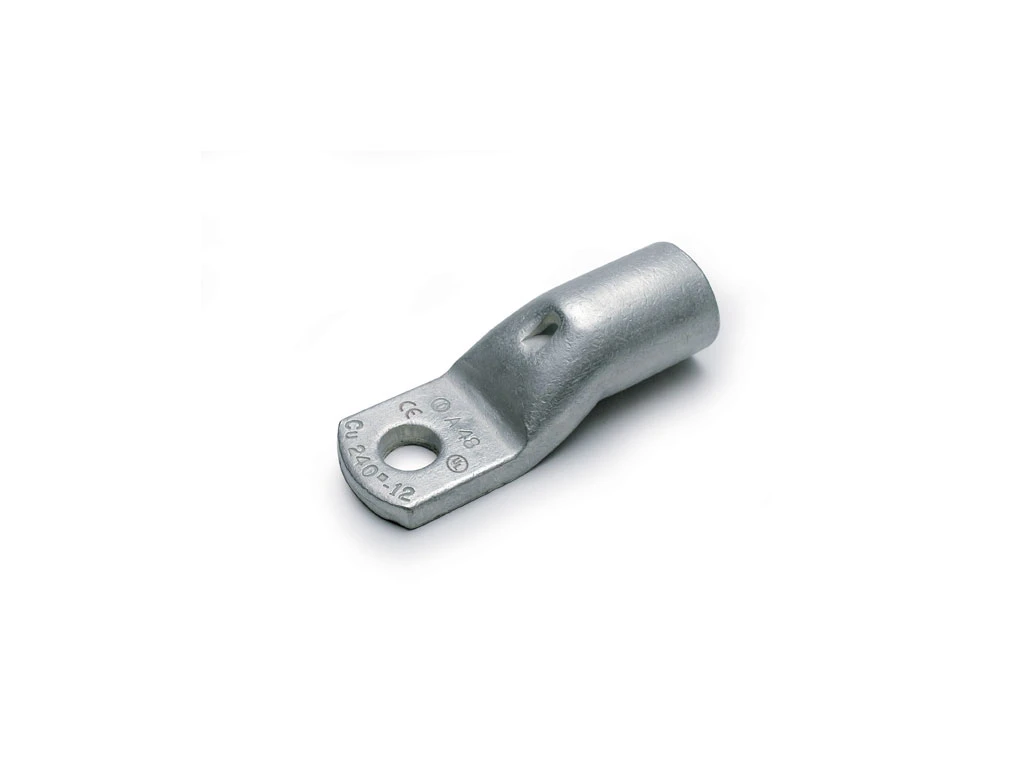

Cembre 300mm² Copper lug contained M10 [Pack of 10]
£26.28 Incl. VAT
300mm² Copper tube crimping lug with contained palm M10 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Contained Palm · · Hole/Stud Size: 10 mm · · Tab/Pin Size: 28 mm · · Diameter: 23.7 mm · · Length Min Max: 95 mm
Description
Technical Specifications Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) AWG size 500 kcmil Surface protection Tinned Flange shape Ring shape Nominal cross section 300 mm² Bolt dimension (metric) 10 Number of fixing holes 1 Slender flange model Yes With sight-hole No Insulated No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/573675
