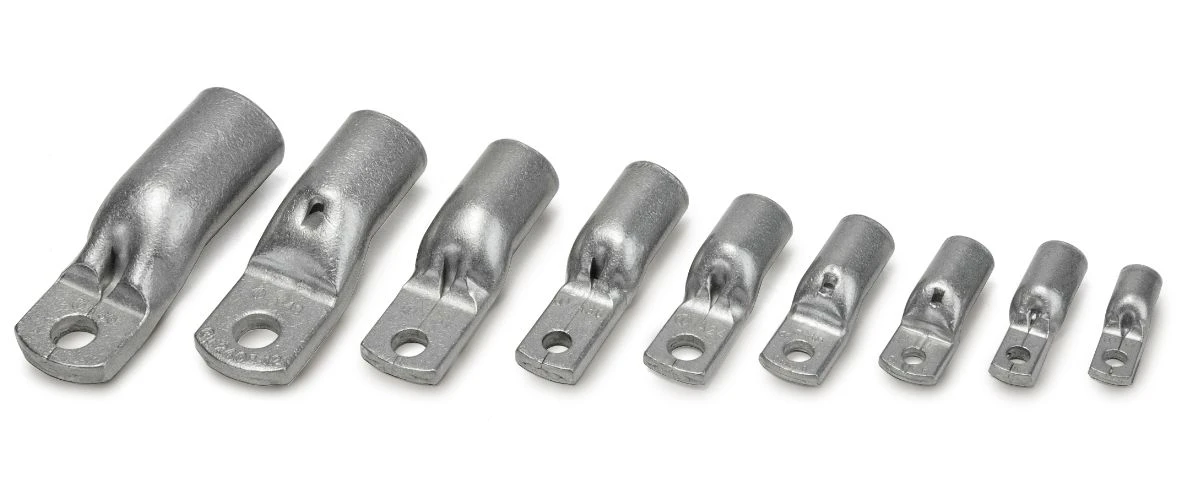

Copper Tube Crimp Lug M6
£3.53 Incl. VAT
95mm² Copper tube crimping lug M6 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation
83 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Material Copper Surface protection Tinned Conductor category Class 5 = flexible AWG size 000 Flange shape Ring shape Nominal cross section 95 mm² Number of fixing holes 1 Bolt dimension (metric) 6 With sight-hole Yes Slender flange model No Insulated No · Technical Data Sheet – Click to Download
