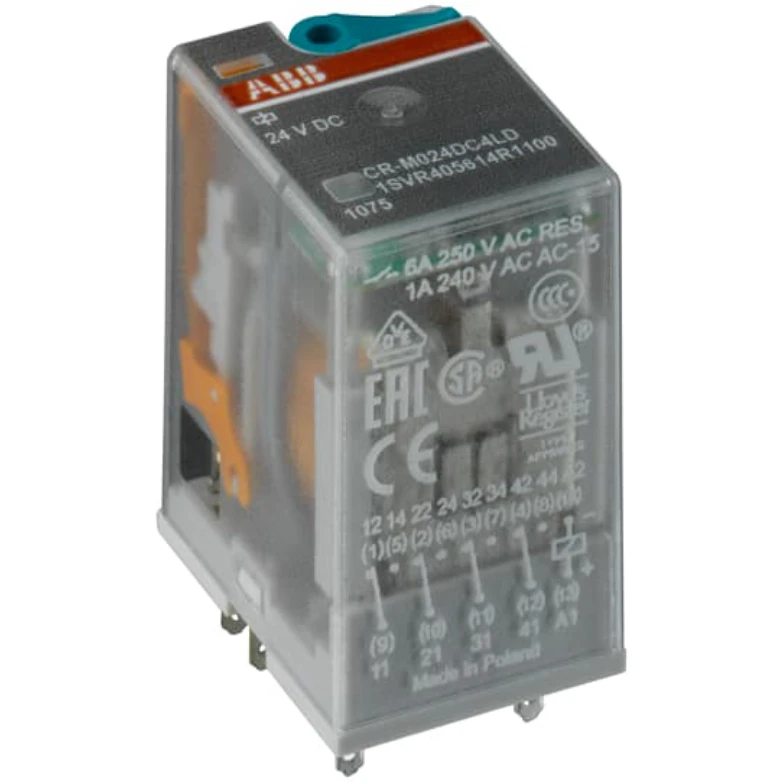

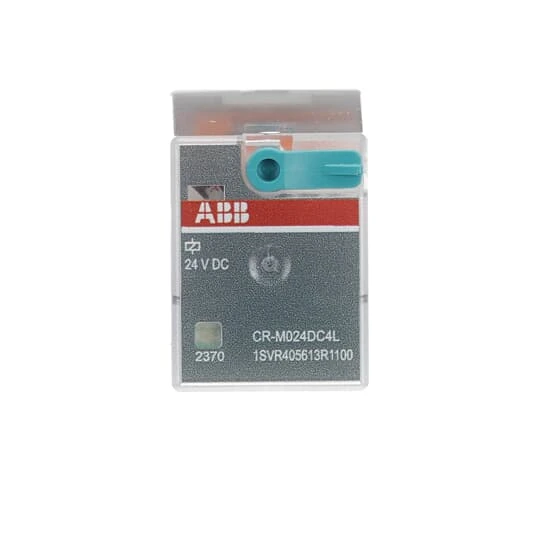

CR-M024DC4L Pluggable interface relay 4c/o – A1-A2=24VDC – 250V/6A – LED
£11.15 Incl. VAT
The CR-M024DC4L Pluggable Interface Relay Is From The CR-M (Miniature) Relay Range. This Relay Operates With A 24 V DC Rated Control Supply Voltage And Has A 4 C/O (SPDT) Output With Contacts Rated At 250 V / 6 A. The Relay Has An Integrated Blue Test Button For Manual Actuation And Locking Of The Output Contacts And An Integrated LED. Standard Sockets, Logic Sockets, Pluggable Function Modules, Holder And Marker Are Available As Accessories. · · · Pluggable Interface Relay · · With mounting plate · · For industries such as food and beverage and pharmaceuticals · · IP66 Degree of protection · · Type-4X, 12, 13 NEMA rating
Out of stock
Description
Technical Specifications Technical Specifications Switching relay Width 21.2 mm Nominal current 6 A Depth 27.5 mm Height 35.6 mm Number of contacts as normally open contact 0.00 Number of contacts as normally closed contact 0.00 Number of contacts as change-over contact 4 Rated control supply voltage at AC 60 Hz – – – V Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at DC 24 – 24 V With forced-guided contacts No Complete with socket No With LED indication Yes With detachable clamps No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
