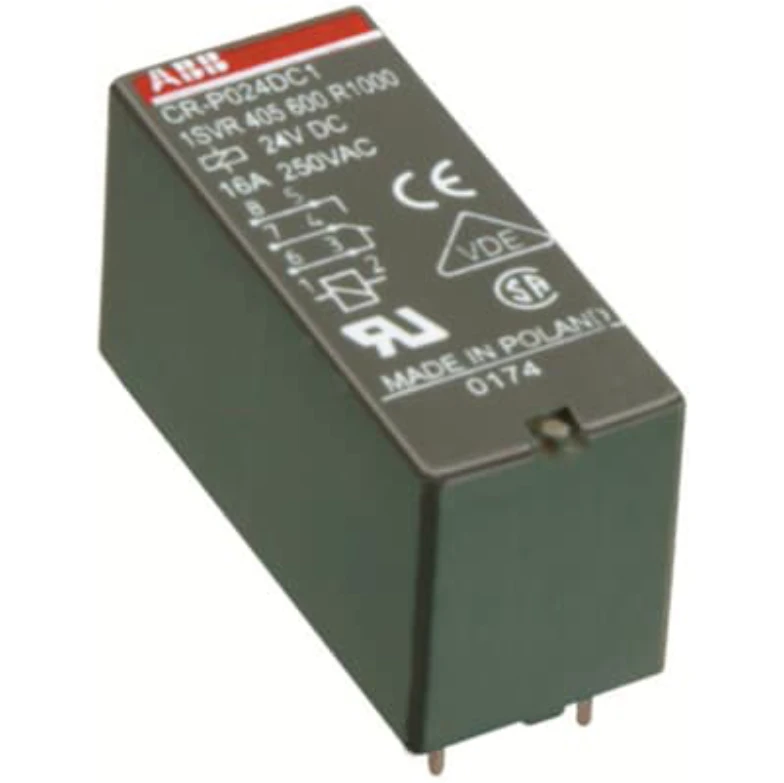

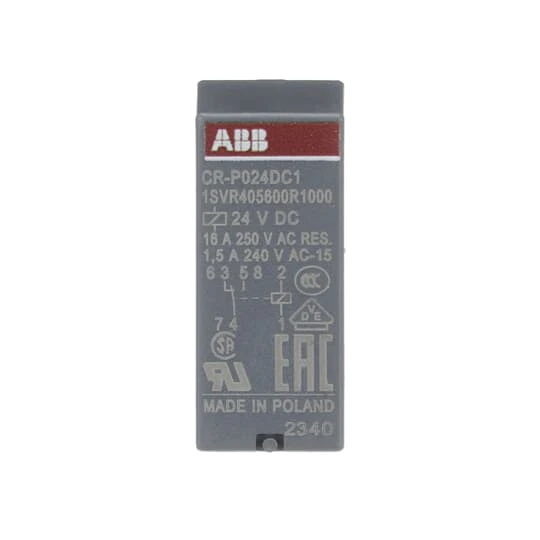

CR-P024DC1 Pluggable interface relay 1c/o – A1-A2=24VDC – 250V/16A
£4.02 Incl. VAT
The CR-P024DC1 Pluggable Interface Relay Is From The CR-P (Pcb) Relay Range. This Relay Operates With A 24 V DC Rated Control Supply Voltage And Has A 1 C/O (SPDT) Output Contact Rated At 250 V / 16 A. Standard Sockets, Logic Sockets, Pluggable Function Modules, Holder And Marker Are Available As Accessories. · · · Pluggable Interface Relay · · It has a metal bezel. · · This key selector switch provides a versatile interface for controlling your machines. · · It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. · · It provides a secure manner for authorized staff to switch between process or machine operating modes. · · It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Out of stock
Description
Technical Specifications Technical Specifications Switching relay Height 15.7 mm Width 12.7 mm Depth 29 mm Nominal current 16 A Number of contacts as normally open contact 0.00 Number of contacts as change-over contact 1 Number of contacts as normally closed contact 0.00 Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at AC 60 Hz – – – V Rated control supply voltage at DC 24 – 24 V With detachable clamps No With forced-guided contacts No Complete with socket No With LED indication No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
