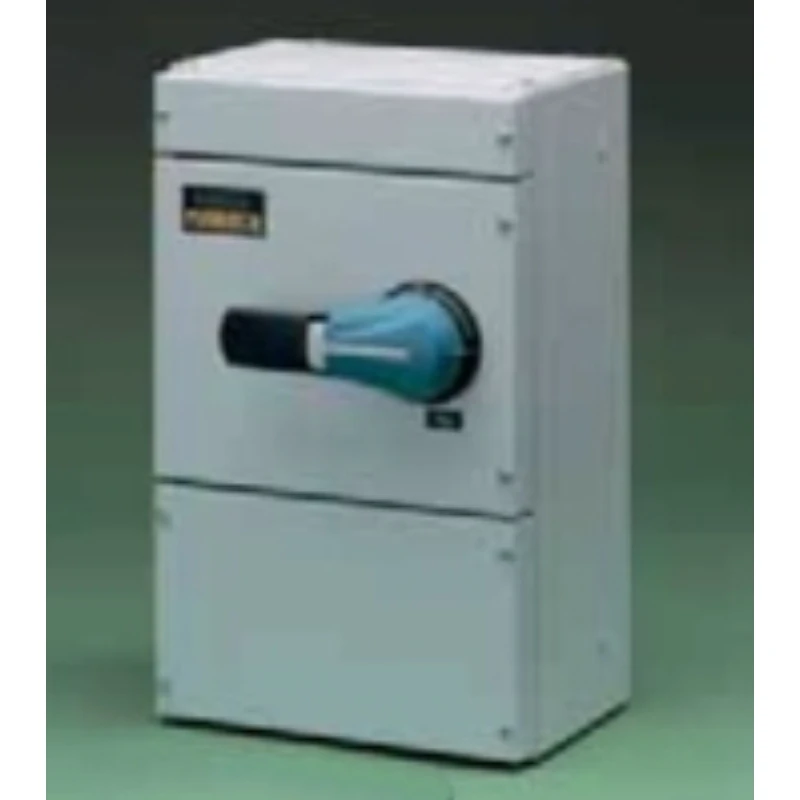

Crabtree 100A 1P+N Fuse Combination Unit c/w Fuses
Crabtree 100A 1P+N Fuse Combination Unit c/w Fuses
Crabtree 100A 1P+N Fuse Combination Unit c/w Fuses - Image 2

Crabtree 100A 1P+N Fuse Combination Unit c/w Fuses

£324.47 Incl. VAT

Crabtree Fusestar Housed Fused Combination Unit has 100A rated fuses. Modular enclosure design (52.5mm) with inbuilt cable spreader box. · · · Supplied with 100A fuses. · · Painted RAL 7035 steel enclosure 425mmH x 263mmW x 188mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 70mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (19100CSB) is required. · · Frequency rating 50/60 Hz · · Fuse type A4 BS88 · · Fused Short Circuit, 80kA RMS · · Switching speed totally operator independent · · Handle padlockable on or off

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 191001NF Categories: , Brand: Product Code: 2500055396

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Rated permanent current Iu 100 A Number of poles 1 Rated operation power at AC-23, 400 V 37 kW Max. rated operation voltage Ue AC 230 V Rated short-time withstand current lcw 1.5 kA Conditioned rated short-circuit current Iq 20 kA Version as safety switch No Suitable for busbar mounting No Motor drive optional No Equipped with connectors Yes Version as emergency stop installation No Motor drive integrated No With error protection No Version as main switch Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
