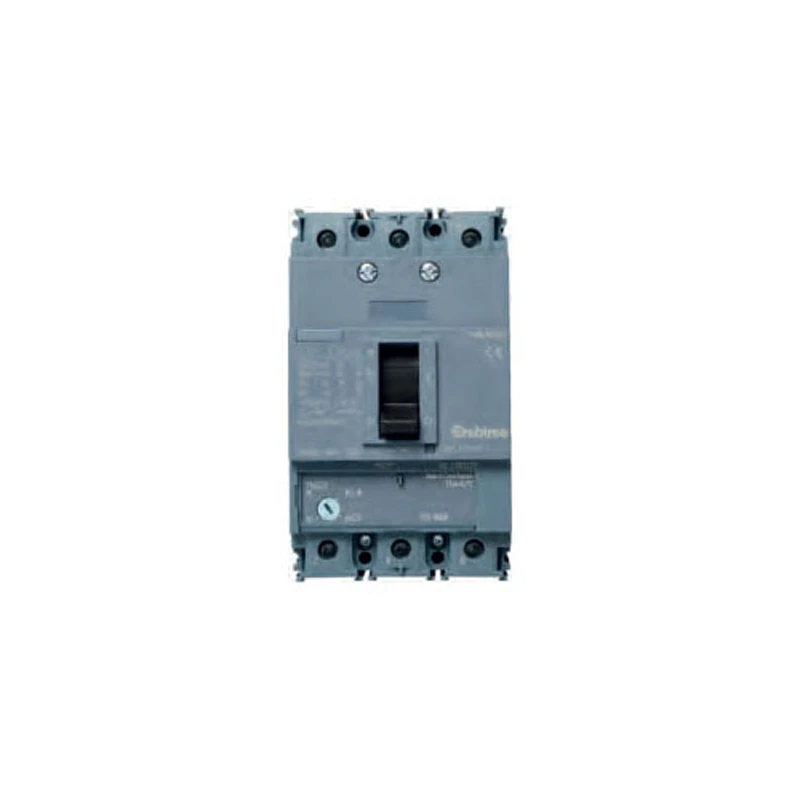

Crabtree 100A 25kA 3P 7PBV MCCB ATFM c/w Box Terminals
Crabtree 100A 25kA 3P 7PBV MCCB ATFM c/w Box Terminals
Crabtree 100A 25kA 3P 7PBV MCCB ATFM c/w Box Terminals - Image 2

Crabtree 100A 25kA 3P 7PBV MCCB ATFM c/w Box Terminals

£146.33 Incl. VAT

Crabtree outgoing MCCBs. 25kA Icu @ 415V AC adjustable thermal & fixed short circuit protection. · · · Adjustable Thermal & Fixed Magnetic Elements · · 25kA @ 415V AC to BS EN 60947-2 · · Fitted with box terminals on line and load sides. Other termination accessories available. · · Expanded board capacities · · For use in Powerstar VM160 outgoing Ways only

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 7PBVN3100 Categories: , , Brand: Product Code: 2501080406

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Rated permanent current Iu 100 A Number of auxiliary contacts as change-over contact 0 Number of poles 3 Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 25 kA Rated voltage 500 – 500 V Overload release current setting 70 – 100 A Motor drive integrated No Adjustment range undelayed short-circuit release 1000 – 1000 A Integrated earth fault protection No With integrated under voltage release No Suitable for DIN rail (top hat rail) mounting No Switched-off indicator available No DIN rail (top hat rail) mounting optional No Complete device with protection unit Yes Motor drive optional No · Technical Data Sheet – Click to Download
