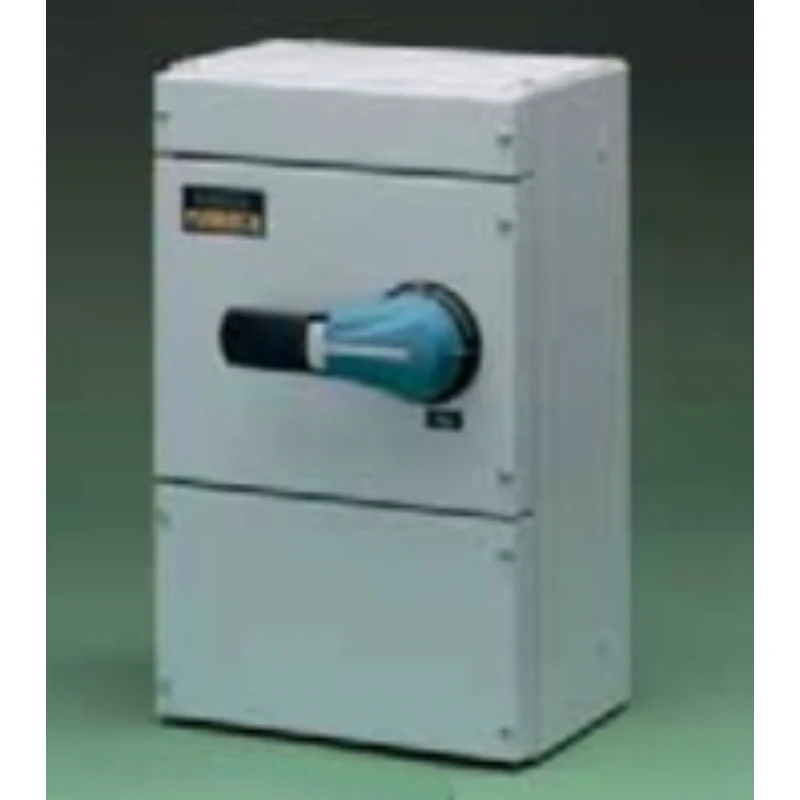

Crabtree 100A 4P Fuse Combination Unit c/w Fuses
£502.12 Incl. VAT
· · Supplied with 100A fuses. · · Painted RAL 7035 steel enclosure 425mmH x 263mmW x 188mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 70mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (19100CSB) is required.
Out of Stock
Description
Technical Specifications Technical Specifications Fuse switch disconnector Max. rated operation voltage Ue AC 415 V Rated short-time withstand current lcw 1.5 kA Rated permanent current Iu 100 A Rated operation power at AC-23, 400 V 37 kW Number of poles 4 Conditioned rated short-circuit current Iq 20 kA With error protection No Motor drive integrated No Equipped with connectors Yes Motor drive optional No Version as safety switch No Version as main switch Yes Suitable for busbar mounting No Version as emergency stop installation No · Technical Data Sheet – Click to Download
