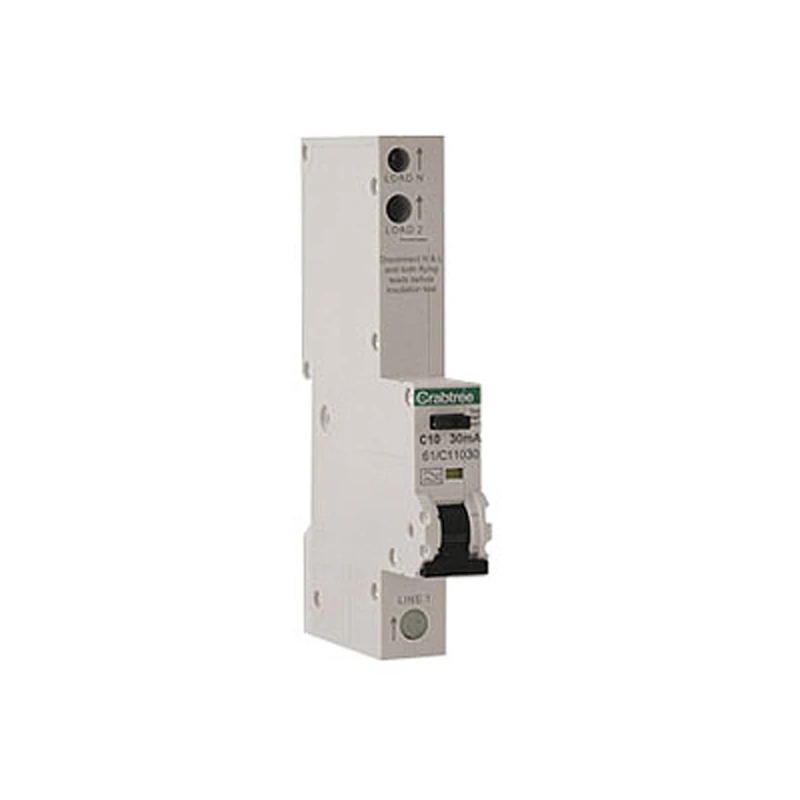

Crabtree 10A 30mA SPN C Curve 6kA Type A RCBO
Crabtree 10A 30mA SPN C Curve 6kA Type A RCBO
Crabtree 10A 30mA SPN C Curve 6kA Type A RCBO - Image 2

Crabtree 10A 30mA SPN C Curve 6kA Type A RCBO

£49.66 Incl. VAT

Electrium AFF106A 10A Type C Starbreaker RCBO is a combination of an RCCB and miniature circuit breaker in a compact, single module, design. An RCBO with a rated residual tripping current of 30mA meeting the requirements of 415.1.1 can be used for circuits and cable installations covered by 411.3.3 (socket outlets), 522.6.6, 522.6.7, 522.6.8 (wiring systems) and 701.411.3.3 (locations containing a bath or shower). · · · Single module, RCBO · · 10A C curve (MCB), 30mA Type A (RCD) · · Single pole · · Plug in · · Depth: 50.2mm · · Trip Sensitivity: 30mA

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 61/C11030 Categories: , , Brand: Product Code: 2500085615

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated current 10 A Recess depth 74 mm Width in number of modular spacings 1 Rated voltage 230 V Over voltage category 3 Number of poles (total) 2 Number of protected poles 1 Current limiting class 3 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Connectable conductor cross section solid-core 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 16 mm² Concurrently switching N-neutral No Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
