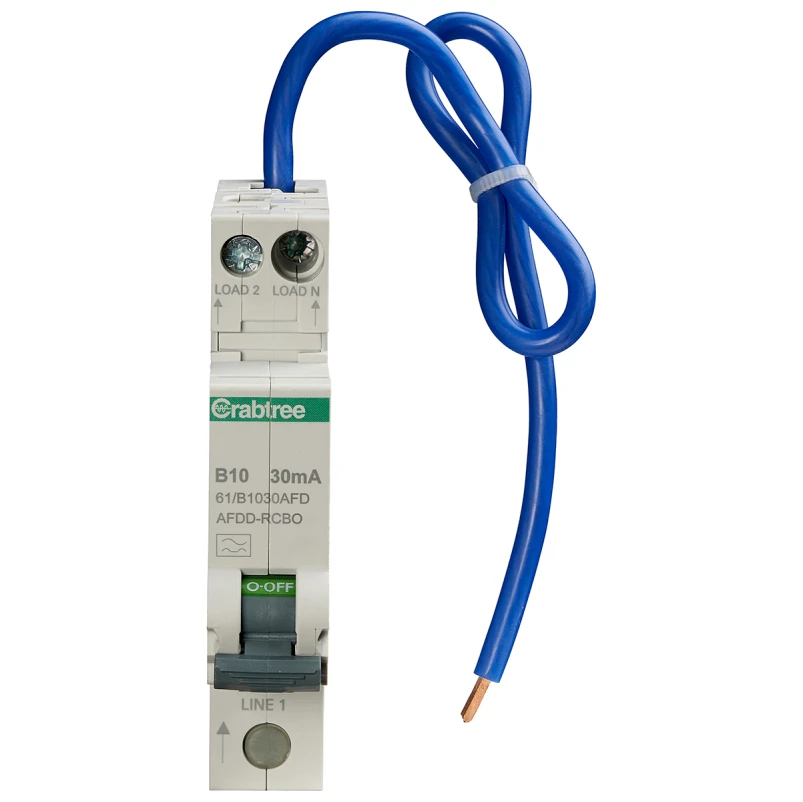

Crabtree 10A 30mA SPswN B Curve 6kA Type A Miniature AFDD RCBO

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated current 10 A Recess depth 73 mm Current limiting class 3 Over voltage category 3 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 2 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Width in number of modular spacings 1 Rated voltage 230 V Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Anti-nuisance tripping version No With interlocking device No Concurrently switching N-neutral Yes · Technical Data Sheet – Click to Download
