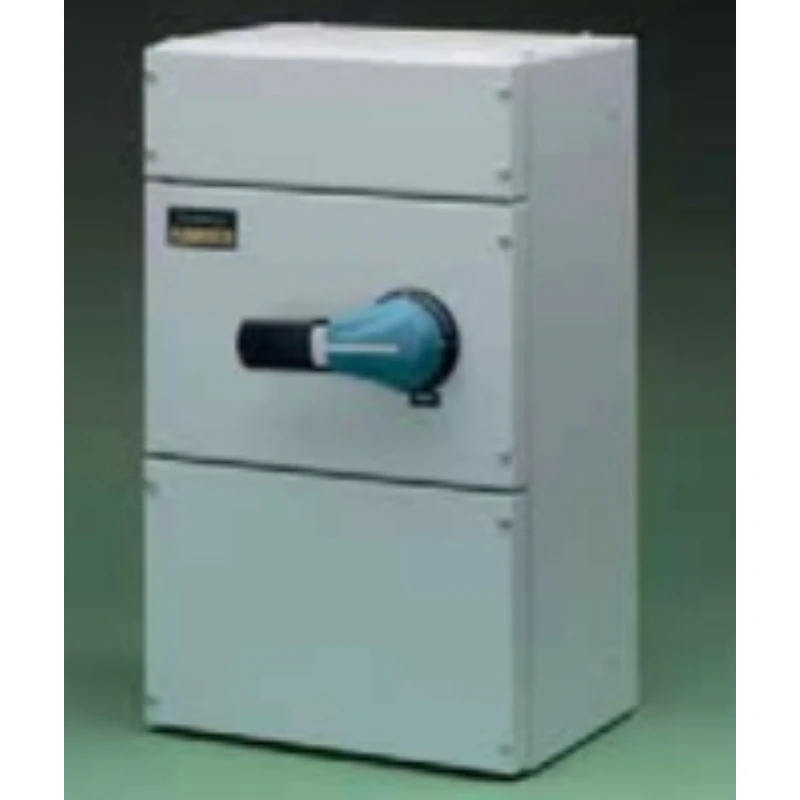

Crabtree 160A 3P+N Fuse Combination Unit
Awaiting product image

Crabtree 160A 3P+N Fuse Combination Unit

£695.26 Incl. VAT

Crabtree Fusestar Housed Fused Combination Unit 160A supplied less fuses. Modular enclosure design (52.5mm) with inbuilt cable spreader box. · · · Supplied without fuses. Switch only. · · Painted RAL 7035 steel enclosure 530mmH x 315mmW x 241mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 150mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (19200CSB) is required. · · Frequency rating 50/60 Hz · · Fuse type A4 BS88 · · Fused Short Circuit, 80kA RMS · · Switching speed totally operator independent · · Handle padlockable on or off

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 191603N Categories: , Brand: Product Code: 2500055413

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Rated permanent current Iu 160 A Number of poles 3 Max. rated operation voltage Ue AC 415 V Version as emergency stop installation No Motor drive integrated No Version as main switch Yes Suitable for busbar mounting No Version as safety switch No With error protection No Equipped with connectors Yes Motor drive optional No · Technical Data Sheet – Click to Download
