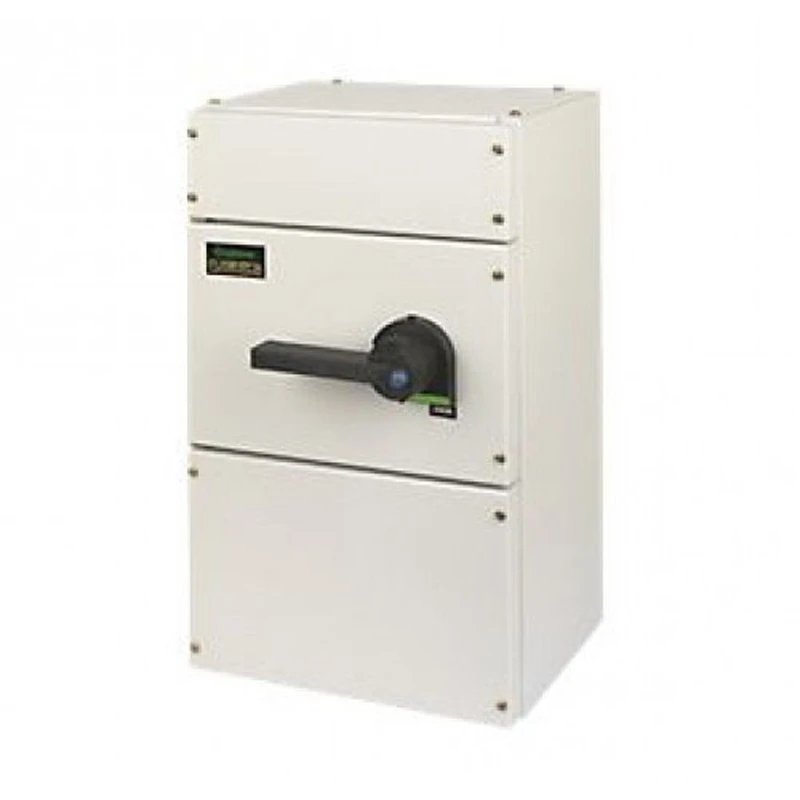

Crabtree 200A 3P+N Fuse Combination Unit
£772.46 Incl. VAT
Crabtree Fusestar Fuse Combination Unit has rated 200A with enclosed combination. Modular enclosure design (52.5mm) with inbuilt cable spreader box. · · · Supplied without fuses. Switch only. · · Painted RAL 7035 steel enclosure 530mmH x 315mmW x 241mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 150mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (19200CSB) is required.
Out of Stock
Description
Technical Specifications Technical Specifications Fuse switch disconnector Rated permanent current Iu 200 A Max. rated operation voltage Ue AC 415 V Number of poles 3 Motor drive integrated No Version as safety switch No Version as main switch Yes Suitable for busbar mounting No With error protection No Version as emergency stop installation No Equipped with connectors Yes Motor drive optional No · Technical Data Sheet – Click to Download
