Crabtree 315A 3P+N Fuse Combination Unit
Awaiting product image

Crabtree 315A 3P+N Fuse Combination Unit

£1,390.46 Incl. VAT

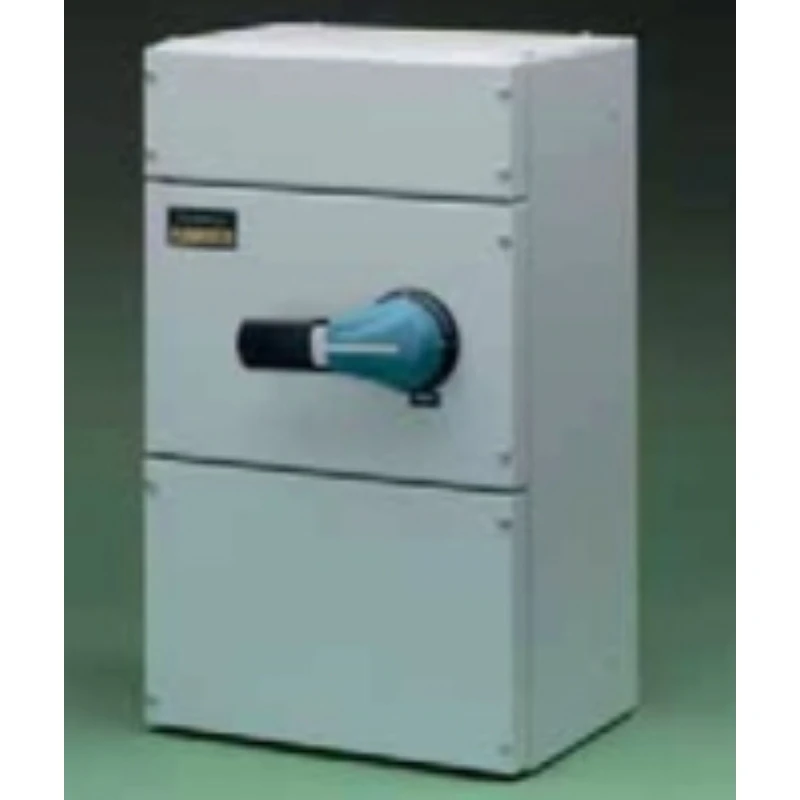

FUSESTAR HOUSED FUSE SWITCH- Modular enclosure design (52.5mm) with inbuilt cable spreader box – Reversible door which opens 180 -. Switching speed totally operator independent – Handle padlock able on or off · · · Supplied without fuses. Switch only. · · Painted RAL 7035 steel enclosure 800mmH x 420mmW x 305mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 300mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (19400CSB) is required.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 193153N Categories: , Brand: Product Code: 2500055422

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Number of poles 3 Rated permanent current Iu 315 A Max. rated operation voltage Ue AC 415 V Motor drive integrated No Equipped with connectors Yes Motor drive optional No Version as main switch Yes Version as safety switch No With error protection No Version as emergency stop installation No Suitable for busbar mounting No · Technical Data Sheet – Click to Download
