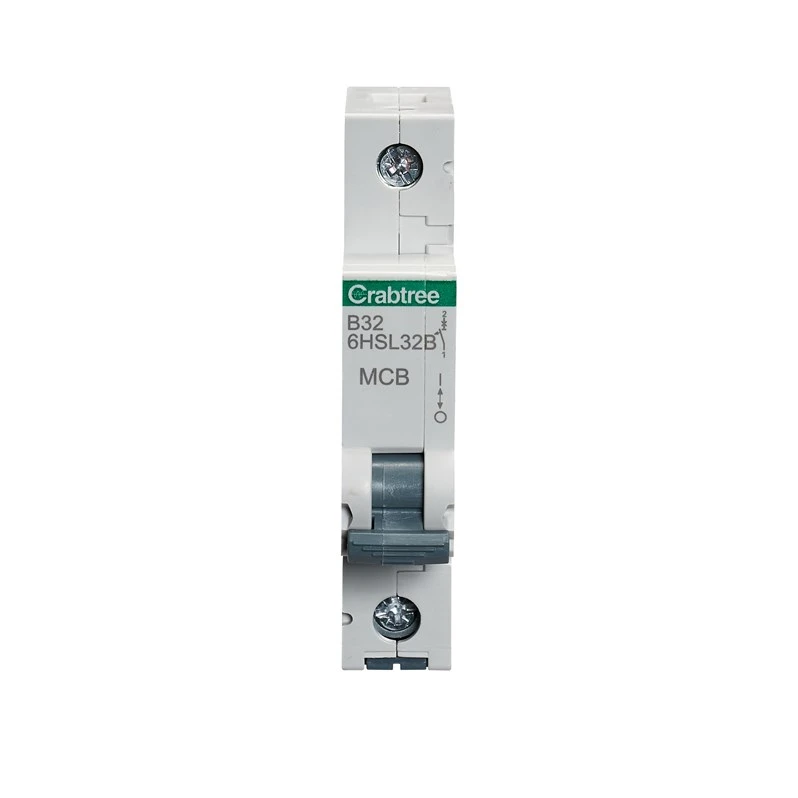

Crabtree 32A SP MCB Type B 10kA
Crabtree 32A SP MCB Type B 10kA
Crabtree 32A SP MCB Type B 10kA - Image 2

Crabtree 32A SP MCB Type B 10kA

£23.57 Incl. VAT

· · B curve trip characterisitic (3-5In) · · Single Pole MCB · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Energy limiting Class 3

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HSL32B Categories: , , Brand: Product Code: 2501514743

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Rated current 32 A Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated insulation voltage Ui 400 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Over voltage category 3 Current limiting class 3 Number of protected poles 1 Number of poles (total) 1 Connectable conductor cross section multi-wired 0.75 – 25 mm² Frequency 50 – 50 Hz Ambient temperature during operating -5 – 40 °C Flush-mounted installation No Concurrently switching N-neutral No Additional equipment possible No
