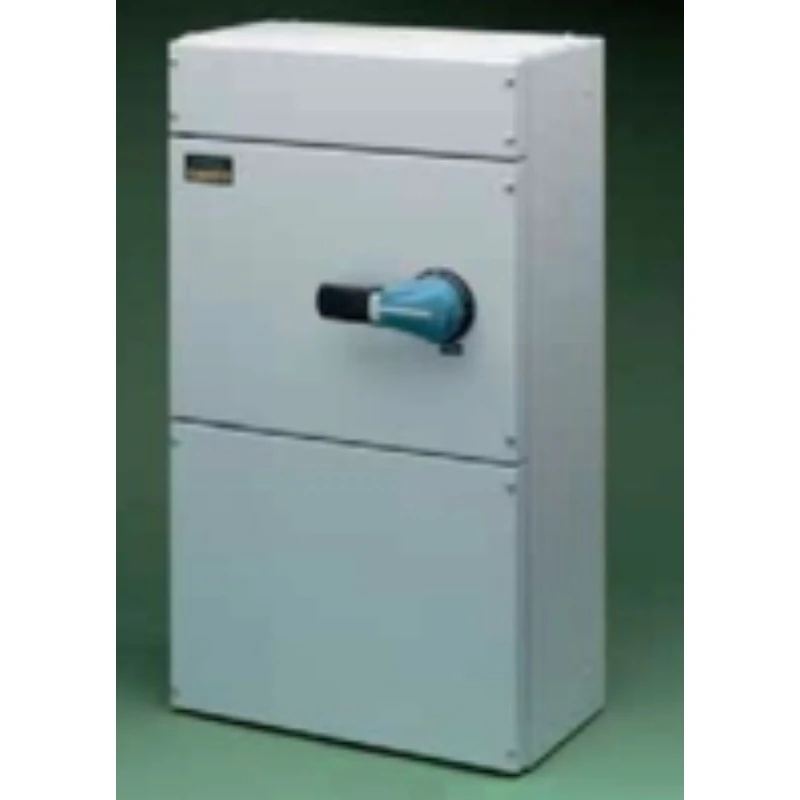

Crabtree 400A 3P+N Fuse Combination Unit
Crabtree 400A 3P+N Fuse Combination Unit
Crabtree 400A 3P+N Fuse Combination Unit - Image 2

Crabtree 400A 3P+N Fuse Combination Unit

£1,544.96 Incl. VAT

Crabtree Fusestar Housed Fused Combination Unit 400A supplied less fuses. Modular enclosure design (52.5mm) with inbuilt cable spreader box. · · · Supplied without fuses. Switch only. · · Painted RAL 7035 steel enclosure 800mmH x 420mmW x 305mmD. Front door reversible, opening to 180° · · Operating handle can be padlocked. · · Accommodates cable spreading room up to 300mm² 4 core. · · Spreading room is allowed for at one end only. To fit a 4 core cable at both ends an additional cable spreader (19400CSB) is required. · · Frequency rating 50/60 Hz · · Fuse type B3, B2, B1 BS88 · · Fused Short Circuit, 80kA RMS · · Switching speed totally operator independent · · Handle padlockable on or off

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 194003N Categories: , Brand: Product Code: 2500055431

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Rated permanent current Iu 400 A Number of poles 3 Max. rated operation voltage Ue AC 415 V Motor drive optional No With error protection No Version as safety switch No Equipped with connectors Yes Motor drive integrated No Version as emergency stop installation No Version as main switch Yes Suitable for busbar mounting No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
