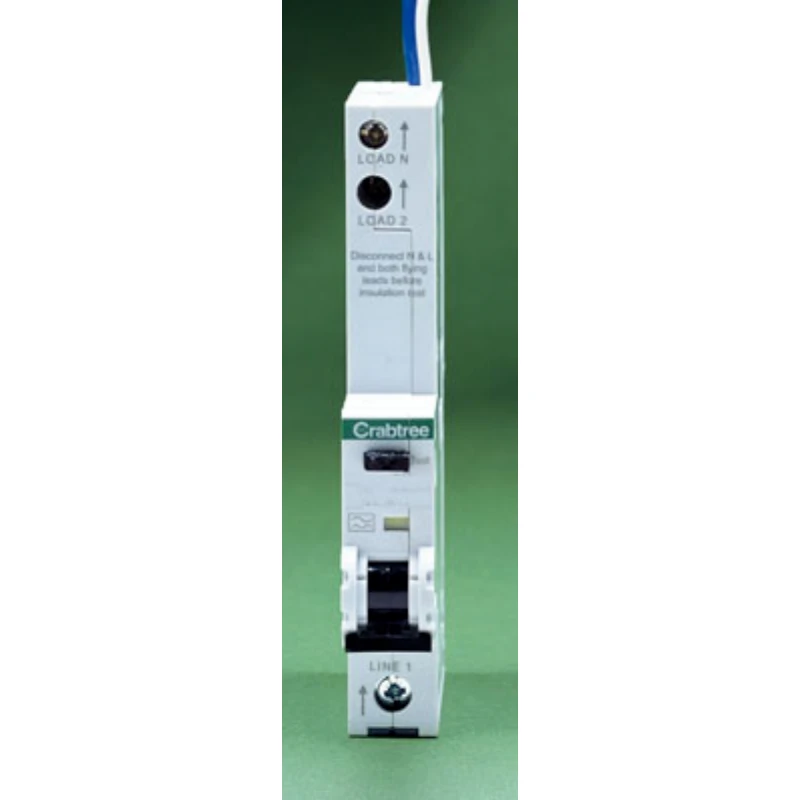

Crabtree 40A 30mA SPN C Curve 6kA Type A RCBO
Awaiting product image

Crabtree 40A 30mA SPN C Curve 6kA Type A RCBO

£50.22 Incl. VAT

Crabtree Loadstar RCBO is a single pole, 30mA trip current and c-curve. It has 16mm terminal capacity (outgoing) for consumer unit. · · · Single module, RCBO · · 40A C curve (MCB), 30mA Type A (RCD) · · Single pole · · 16mm terminal capacity (outgoing) · · 6ka Breaking capacity · · type C curve · · 40A rated

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6FSR40/30C Categories: , , , Brand: Product Code: 2500087588

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Recess depth 74 mm Rated current 40 A Rated voltage 230 V Width in number of modular spacings 1 Over voltage category 3 Rated insulation voltage Ui 400 V Current limiting class 3 Number of poles (total) 2 Rated fault current 0.03 A Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
