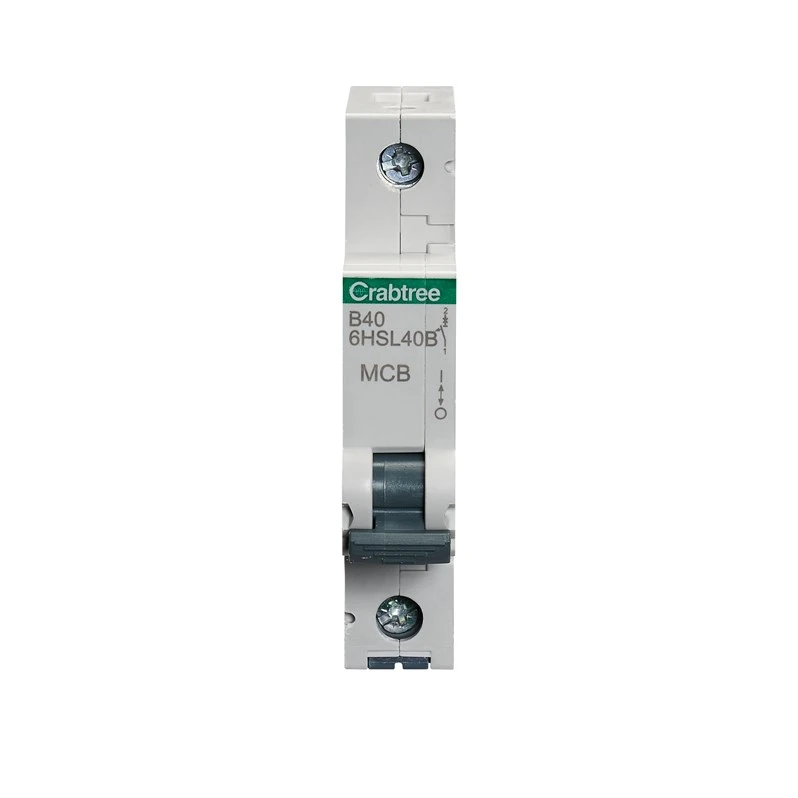

Crabtree 40A SP MCB Type B 10kA
Crabtree 40A SP MCB Type B 10kA
Crabtree 40A SP MCB Type B 10kA - Image 2

Crabtree 40A SP MCB Type B 10kA

£24.64 Incl. VAT

· · B curve trip characterisitic (3-5In) · · Single Pole MCB · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Energy limiting Class 3

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HSL40B Categories: , , Brand: Product Code: 2501514634

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated insulation voltage Ui 400 V Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 1 Number of protected poles 1 Current limiting class 3 Rated voltage 230 V Over voltage category 3 Width in number of modular spacings 1 Rated current 40 A Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Additional equipment possible No Flush-mounted installation No Concurrently switching N-neutral No
