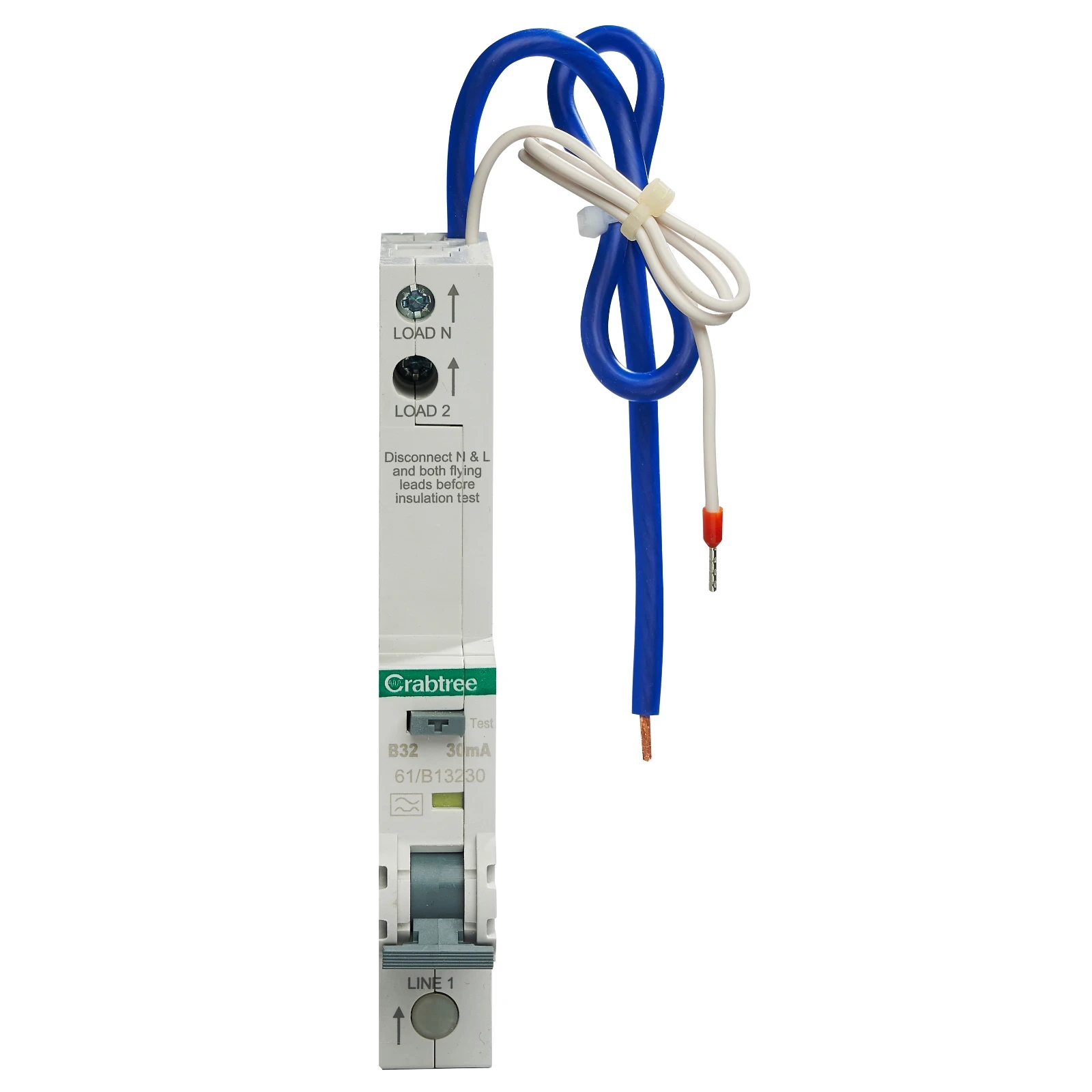

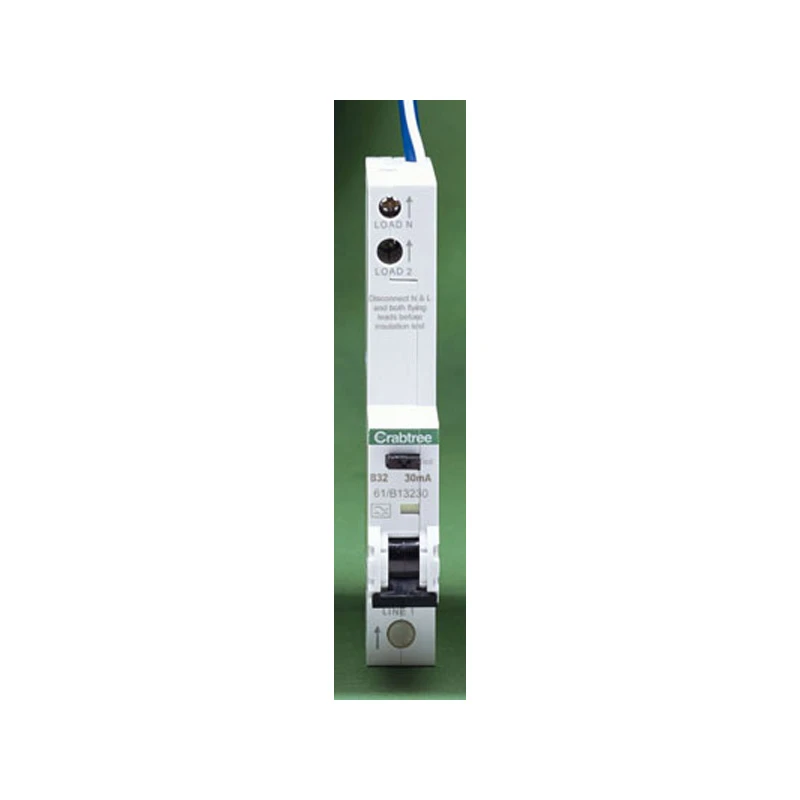

Crabtree 61/B13230 32A B Curve RCBO 30mA 6kA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Number of poles (total) 2 Number of protected poles 1 Current limiting class 3 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Rated voltage 230 V Rated current 32 A Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 1 Recess depth 74 mm Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 40 °C Flush-mounted installation No Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
