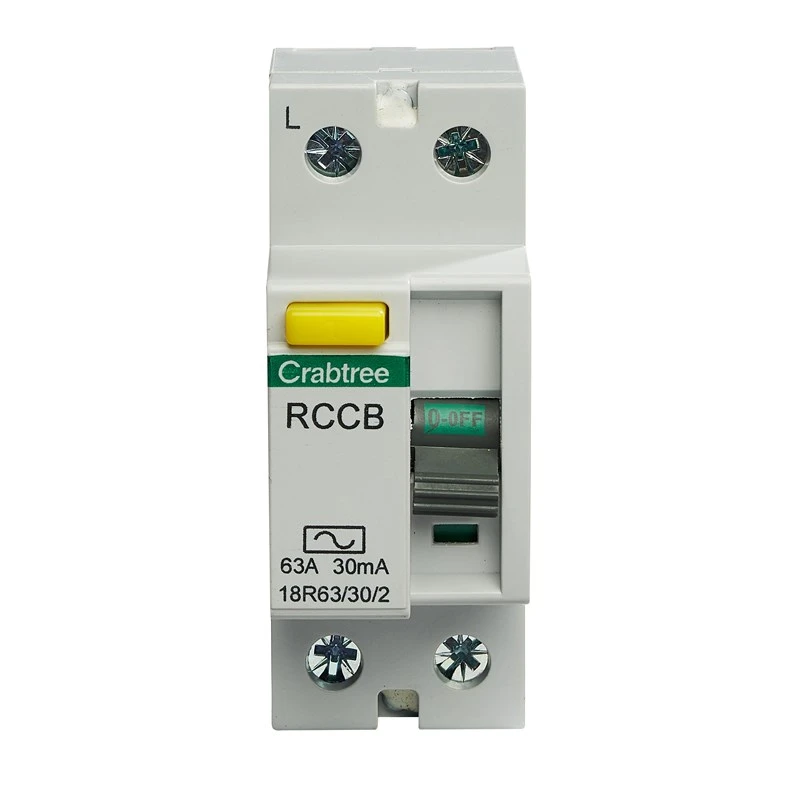

Crabtree 63A 30mA DP Type AC RCCB
Crabtree 63A 30mA DP Type AC RCCB
Crabtree 63A 30mA DP Type AC RCCB - Image 2

Crabtree 63A 30mA DP Type AC RCCB

£52.25 Incl. VAT

Crabtree – Wiring Accessories 18R63/30/2 Loadstar RCCB DP Class AC 63A 30mA · · · Double pole RCCB · · 63A 30mA · · Type AC · · Mounting: DIN Rail · · Trip Type: Type AC · · Sensitivity: 30 mA · · Cable Capacity: 35 mm2 · · Width: 35 mm · · Current Rating: 63 A · · Voltage: 230 V

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 18R63/30/2 Category: Brand: Product Code: 2500082907

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) Number of poles 2 Rated voltage 230 V Rated current 63 A Width in number of modular spacings 2 Rated insulation voltage Ui 400 V Rated fault current 0.03 A Rated impulse-withstand voltage (Uimp) 4 kV Connectable conductor cross section multi-wired 50 – 50 mm² Selective protection No With interlocking device No Additional equipment possible No · Technical Data Sheet – Click to Download
