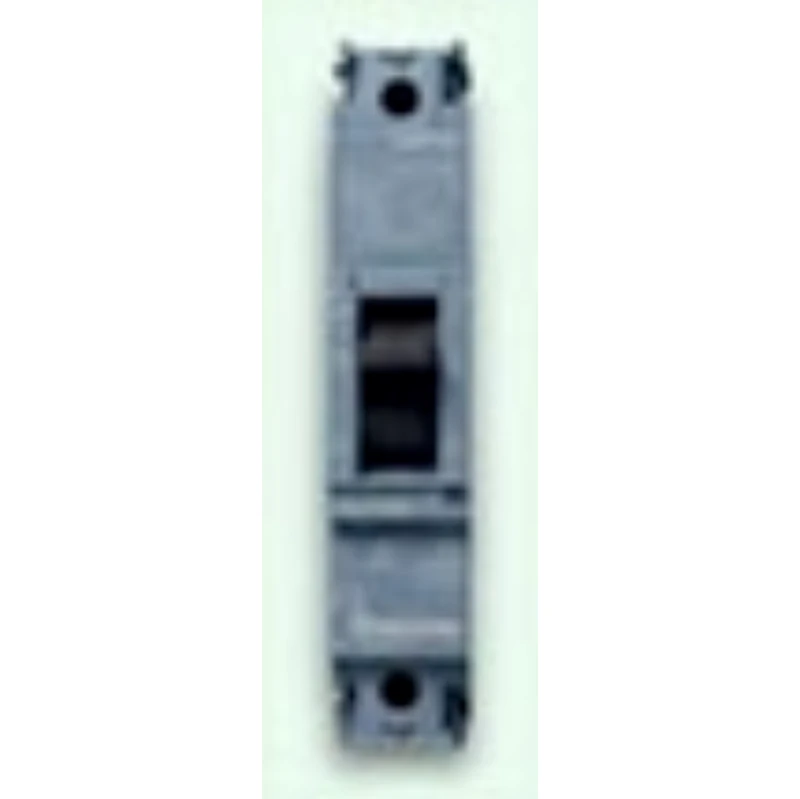

Crabtree 80A 25kA 1P 7PBV MCCB FTFM c/w Box Terminals
Crabtree 80A 25kA 1P 7PBV MCCB FTFM c/w Box Terminals
Crabtree 80A 25kA 1P 7PBV MCCB FTFM c/w Box Terminals - Image 2

Crabtree 80A 25kA 1P 7PBV MCCB FTFM c/w Box Terminals

£74.48 Incl. VAT

Crabtree Powerstar VM160 Outgoing Moulded Case Circuit Breaker is suitable for fixed overload and fixed short circuit protection. The extension terminals are used to accommodate oversized cables. It is designed and manufactured in the UK, builds on the su · · · Fixed Thermal & Magnetic Elements · · 25kA @ 240V AC @ 415V AC to BS EN 60947-2 · · Fitted with box terminals on line and load sides. Other termination accessories available. · · ln = 80A · · For use in Powerstar VM160 outgoing Ways only · · for use in Powerstar VM160 panelboards · · Improved cabling space · · Designed to make user selection and installation quicker, easier

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 7PBVF180 Categories: , , Brand: Product Code: 2501080398

Description

Technical Specifications  Technical Specifications Moulded case circuit breaker (MCCB) Number of auxiliary contacts as normally open contact 0 Number of poles 1 Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 5 kA Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as change-over contact 0 Overload release current setting 80 – 80 A Rated permanent current Iu 80 A Adjustment range undelayed short-circuit release 800 – 800 A Rated voltage 415 – 415 V Motor drive optional No DIN rail (top hat rail) mounting optional No Complete device with protection unit Yes With integrated under voltage release No Integrated earth fault protection No Switched-off indicator available No Suitable for DIN rail (top hat rail) mounting No Motor drive integrated No · Technical Data Sheet – Click to Download
