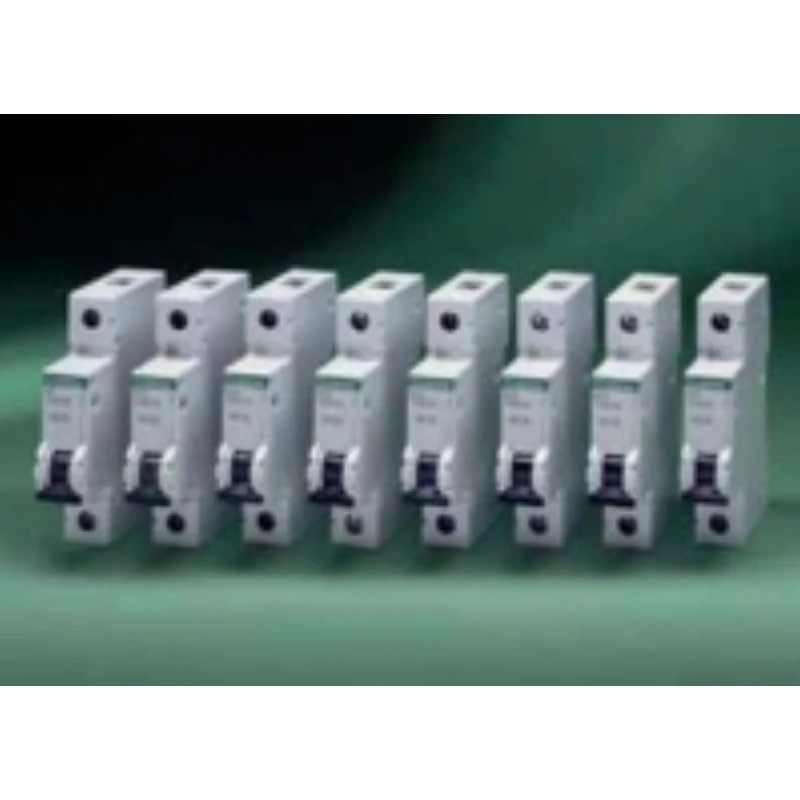

Crabtree B6 16kA 1P MCB (1 Module Width)
Crabtree B6 16kA 1P MCB (1 Module Width)
Crabtree B6 16kA 1P MCB (1 Module Width) - Image 2

Crabtree B6 16kA 1P MCB (1 Module Width)

£15.60 Incl. VAT

Crabtree – Wiring Accessories 70B/06 Polestar Compact MCB SP Type B 6A 16kA · · · B curve trip characteristic (3-5In) · · 16kA to BS EN 60898-1 (15kA to BS EN 60947-2) · · Single pole MCB · · Ingress Protection: IP20 · · Energy limiting Class 3 · · Short Circuit Rating: 16 kA · · Cable Capacity: 35 mm2 · · Width: 18 mm · · Current Rating: 6 A · · Voltage: 240|415 V

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 70B/06 Categories: , , Brand: Product Code: 2500477572

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 6 A Rated voltage 230 V Width in number of modular spacings 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 16 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn EN 60898 at 230 V 16 kA Number of protected poles 1 Number of poles (total) 1 Current limiting class 3 Rated insulation voltage Ui 400 V Frequency 50 – 50 Hz Over voltage category 3 Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
