Crabtree C20 16kA 3P MCB (3 Module Width)
Crabtree C20 16kA 3P MCB (3 Module Width)

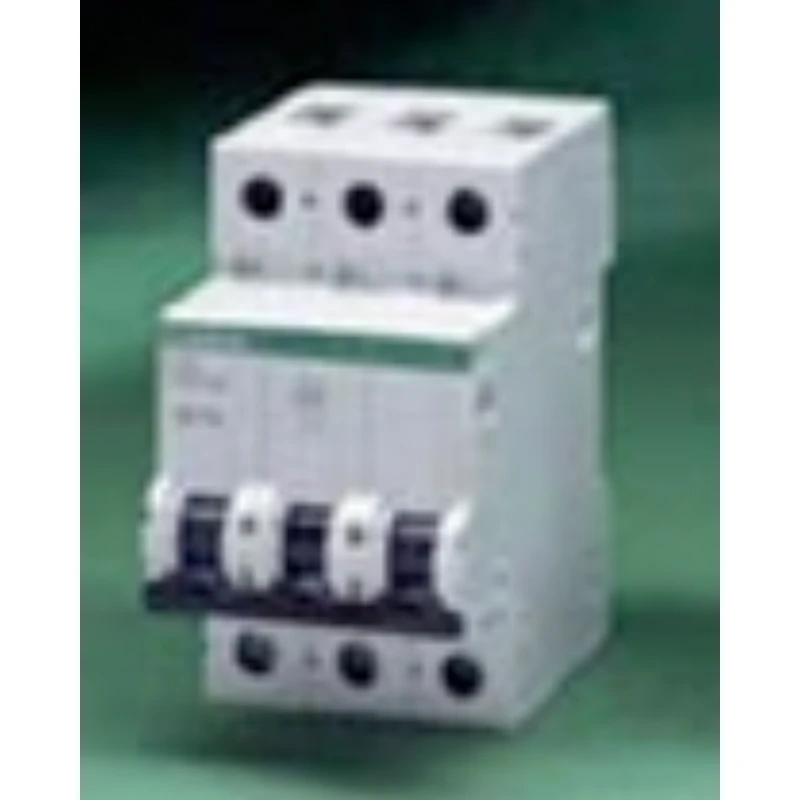

Crabtree C20 16kA 3P MCB (3 Module Width) - Image 2

Crabtree C20 16kA 3P MCB (3 Module Width)

£70.52 Incl. VAT

· · C curve trip characteristic (5-10In) · · 16kA to BS EN 60898-1 (15kA to BS EN 60947-2) · · Triple pole MCB · · Energy limiting Class 3

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 73C/20 Categories: , , Brand: Product Code: 2500477641

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 20 A Rated voltage 230 V Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 3 Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 16 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 16 kA Rated insulation voltage Ui 400 V Number of protected poles 3 Current limiting class 3 Frequency 50 – 50 Hz Over voltage category 3 Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
