Crabtree C32 30mA 16kA 1P+N Type A RCBO (1 Module Width)
Crabtree C32 30mA 16kA 1P+N Type A RCBO (1 Module Width)

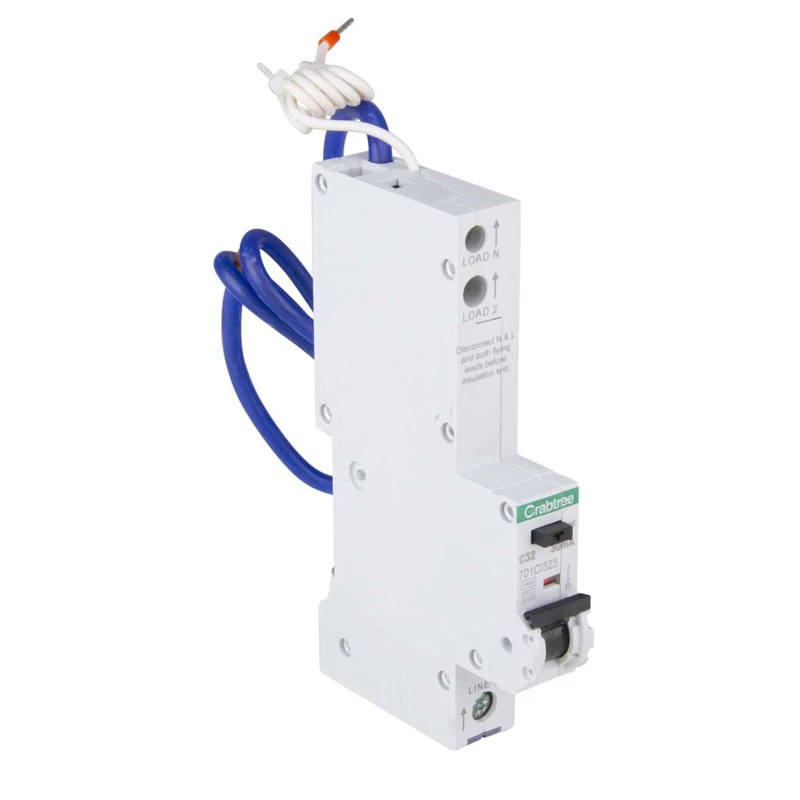

Crabtree C32 30mA 16kA 1P+N Type A RCBO (1 Module Width) - Image 2

Crabtree C32 30mA 16kA 1P+N Type A RCBO (1 Module Width)

£108.22 Incl. VAT

Crabtree Polestar Residual Current Circuit Breaker with overcurrent protection (RCBO) is suitable for use within Polestar’s 30mA sensitivity, C characteristic and unswitched neutral compact distribution boards. · · · Single Module 16kA RCBO · · 32A C curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Crabtree Polestar Compact Distribution Boards

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 701C/323 Categories: , , Brand: Product Code: 2500477663

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Width in number of modular spacings 1 Rated voltage 230 V Rated current 32 A Rated insulation voltage Ui 400 V Number of poles (total) 1 Over voltage category 3 Rated fault current 0.03 A Number of protected poles 1 Current limiting class 3 Rated short-circuit breaking capacity according to EN 61009 16 kA Rated impulse-withstand voltage (Uimp) 4 kV Connectable conductor cross section solid-core 0.75 – 16 mm² Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 45 °C With interlocking device No Anti-nuisance tripping version No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
