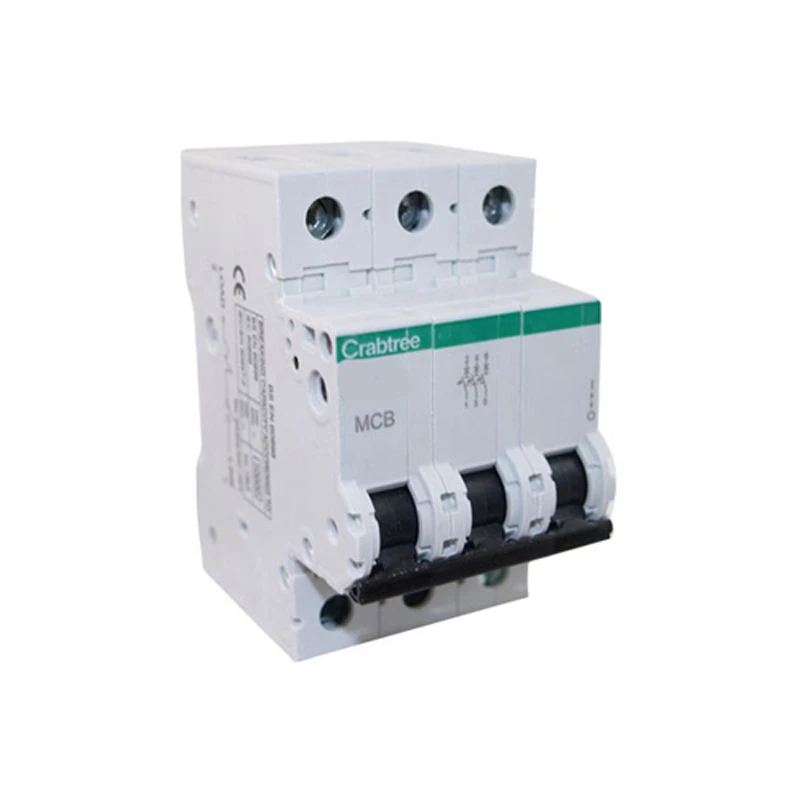

Crabtree D32 10kA 3P MCB (3 Module Width)
Crabtree D32 10kA 3P MCB (3 Module Width)
Crabtree D32 10kA 3P MCB (3 Module Width) - Image 2

Crabtree D32 10kA 3P MCB (3 Module Width)

£37.85 Incl. VAT

Crabtree Loadstar Miniature Circuit Breaker suitable for use within Loadstar distribution boards. It is compliant with BS EN 60898 and EN 60947-2 certifications. It has terminal capacity of 35mm² cable and 18mm wide module. · · · D curve trip characteristic (10-20In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 415V AC · · Triple pole MCB · · Compliant with BS EN 60898 and EN 60947-2 · · Energy limiting Class 3

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HT32D Categories: , , Brand: Product Code: 2500098104

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230 V Width in number of modular spacings 3 Rated insulation voltage Ui 400 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Number of protected poles 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 3 Current limiting class 3 Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated current 32 A Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
