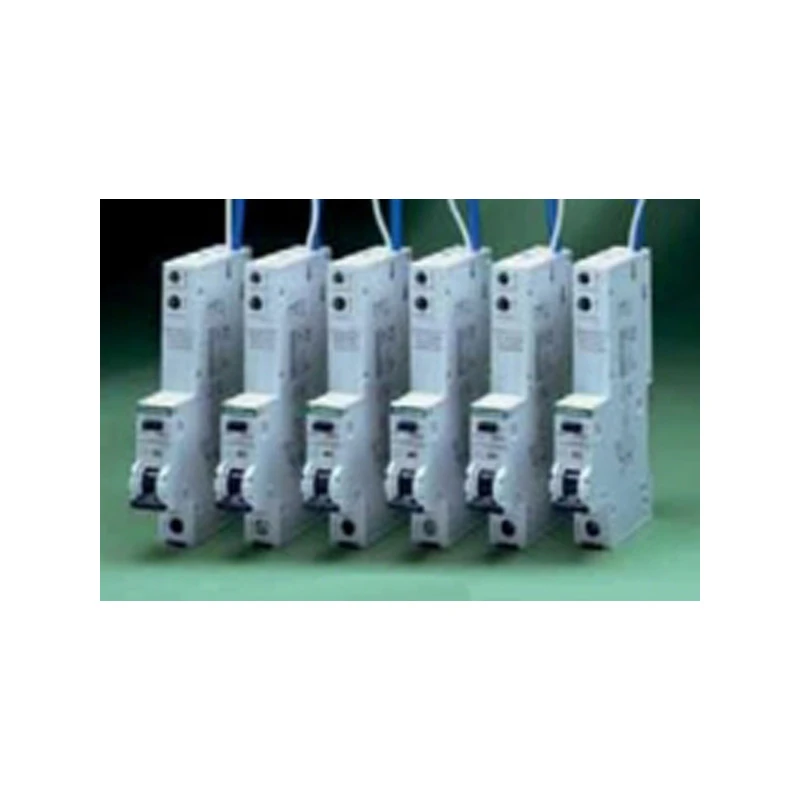

Crabtree C6 30mA 10kA 1P+N Type A RCBO (1 Module Width)
Crabtree C6 30mA 10kA 1P+N Type A RCBO (1 Module Width)
Crabtree C6 30mA 10kA 1P+N Type A RCBO (1 Module Width) - Image 2
Crabtree C6 30mA 10kA 1P+N Type A RCBO (1 Module Width) - Image 3

Crabtree C6 30mA 10kA 1P+N Type A RCBO (1 Module Width)

£50.89 Incl. VAT

Crabtree – Wiring Accessories 6HSR06/30C Loadstar RCBO SPN Type C 6A 30mA 10kA 1 Module · · · Single Module 10kA RCBO · · 6A C curve (MCB), 30mA Type A (RCD) · · Neutral & Earth Tail lengths = 600mm · · Suitable for use in Crabtree Loadstar Distribution Boards · · Trip Type: Type C · · Short Circuit Rating: 10 kA · · Sensitivity: 30 mA · · Cable Capacity: 16 mm2 · · Width: 18 mm · · Current Rating: 6 A

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 6HSR06/30C Categories: , , Brand: Product Code: 2500096052

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Mounting method DIN rail Rated current 6 A Rated voltage 230 V Rated short-circuit breaking capacity according to EN 61009 10 kA Number of protected poles 1 Number of poles (total) 1 Over voltage category 3 Width in number of modular spacings 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated fault current 0.03 A Current limiting class 3 Connectable conductor cross section solid-core 0.75 – 16 mm² Rated insulation voltage Ui 400 V Connectable conductor cross section multi-wired 0.75 – 16 mm² Ambient temperature during operating -5 – 45 °C Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
