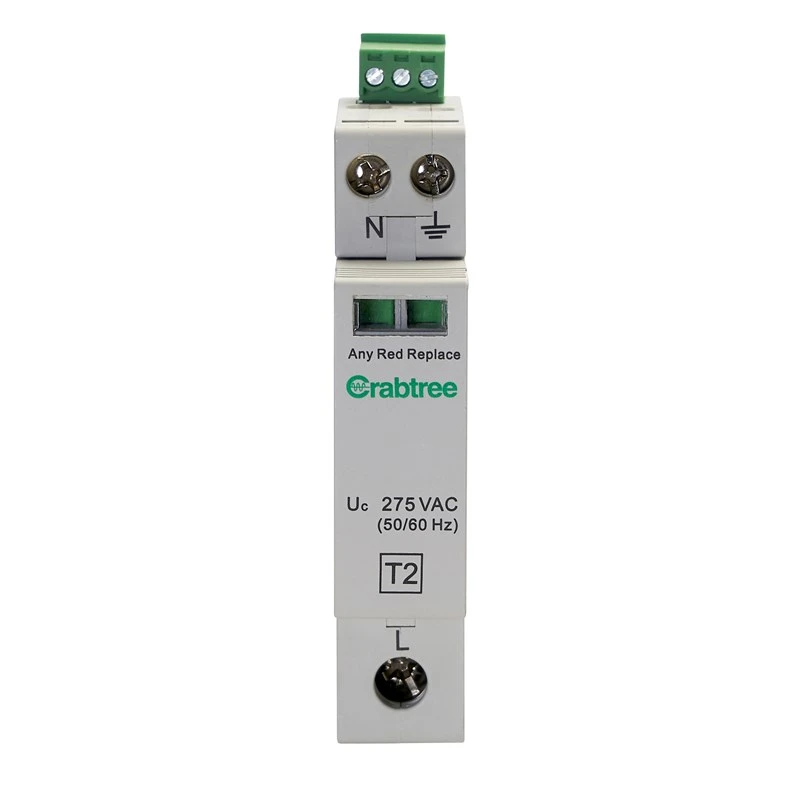

Crabtree Type 2 Miniature SPD Kit
Crabtree Type 2 Miniature SPD Kit
Crabtree Type 2 Miniature SPD Kit - Image 2

Crabtree Type 2 Miniature SPD Kit

£106.55 Incl. VAT

· · Type 2 SPD kit · · For Crabtree Loadstar consumer units and Loadstar L range Type A SPN Distribution Boards · · DIN rail mounting, single module, including all connections · · Status indication and volt free contact for remote monitoring · · Replacement protective element (cartridge) is available, CRT2SPD/P

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CRT2SPD3W/1 Categories: , Brand: Product Code: 2501371149

Description

Technical Specifications  Technical Specifications Surge protection device for power supply systems Voltage protection level 1.3 kV Voltage protection level N-PE 1.3 kV Max. conductor cross section solid (solid, stranded) 25 mm² Voltage protection level L-N 1.3 kV Max. voltage (Uc) 275 V Nominal discharge surge current 8/20 µs (In) 20 kA Short-circuit breaking capacity (Isccr) 25 kA Max. discharge surge current (8/20) 40 kA Type / Test class 2 Yes Integrated backup fuse Yes With remote signalling contact Yes System configuration TN-S Yes System configuration TT Yes System configuration TN-C-S Yes Integrated short-circuit protection Yes
