Craig & Derricott Fuse Combination Switch Triple Pole+Neutral Link 250A Metal Hinged IP65
Craig & Derricott Fuse Combination Switch Triple Pole+Neutral Link 250A Metal Hinged IP65

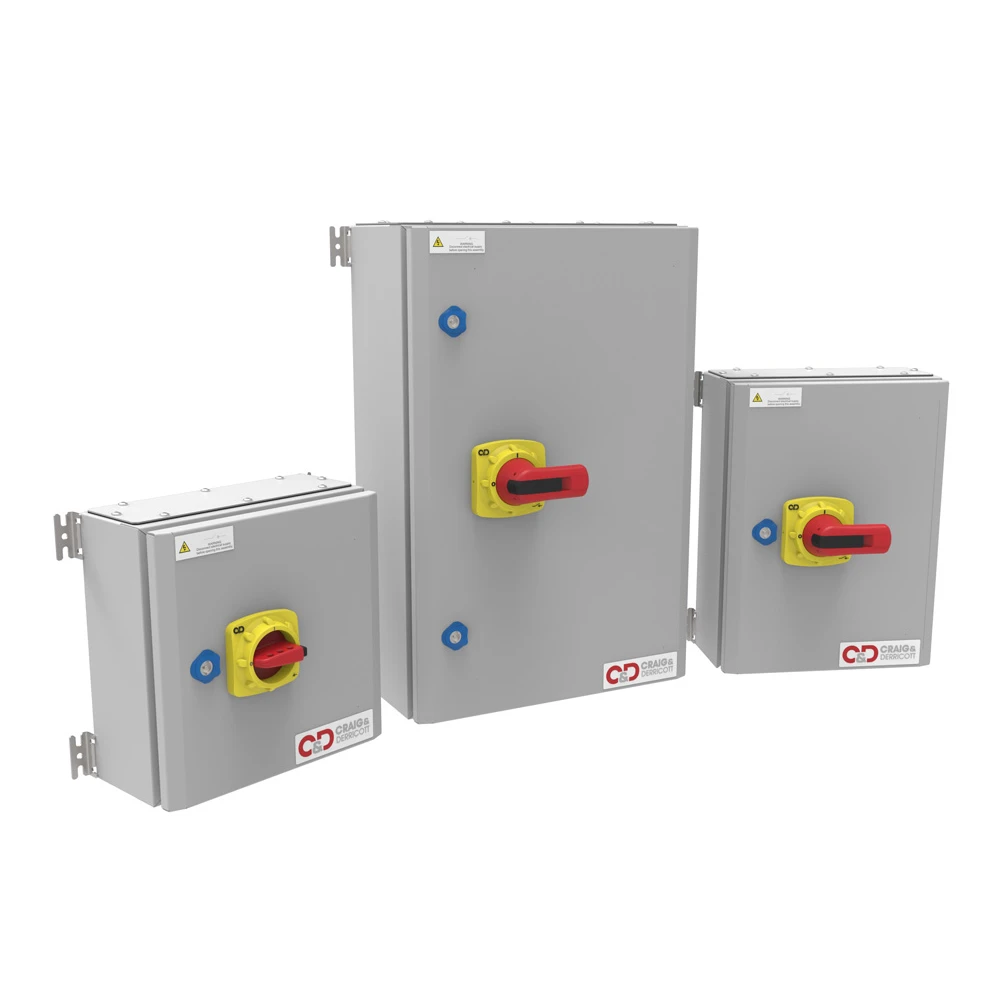

Craig & Derricott Fuse Combination Switch Triple Pole+Neutral Link 250A Metal Hinged IP65 - Image 2

Craig & Derricott Fuse Combination Switch Triple Pole+Neutral Link 250A Metal Hinged IP65

£1,132.24 Incl. VAT

Craig and Derricott i-Switch Fuse Combination Unit is made of powder coated sheet steel with switches mounted on a removable galvanised chassis plate. The unit is provided with removable top and bottom gland plates. Padlockable handle which allows for the insertion of up to three padlocks in the ‘Off’ position thus preventing the isolator being switched to the ‘On’ position. The door interlock handle can be defeated to enable emergency opening or for testing purposes. · · · Made of powder coated sheet steel · · IP65 protection rating · · Padlockable handle which allows for the insertion of up to three padlocks · · The door interlock handle can be defeated to enable emergency opening or for testing purposes · · Provided with removable top and bottom gland plates

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EDFG02503NL Categories: , Brand: Product Code: 2501103848

Description

Technical Specifications  Technical Specifications Fuse switch disconnector Suitable for fuses Shape B1-B3 Degree of protection (IP), front side IP65 Type of electrical connection of main circuit Bolt connection Type of control element Short thumb-grip Conditioned rated short-circuit current Iq 80 kA Rated permanent current Iu 250 A Number of poles 3 Max. rated operation voltage Ue AC 415 V Version as safety switch Yes Version as main switch No
