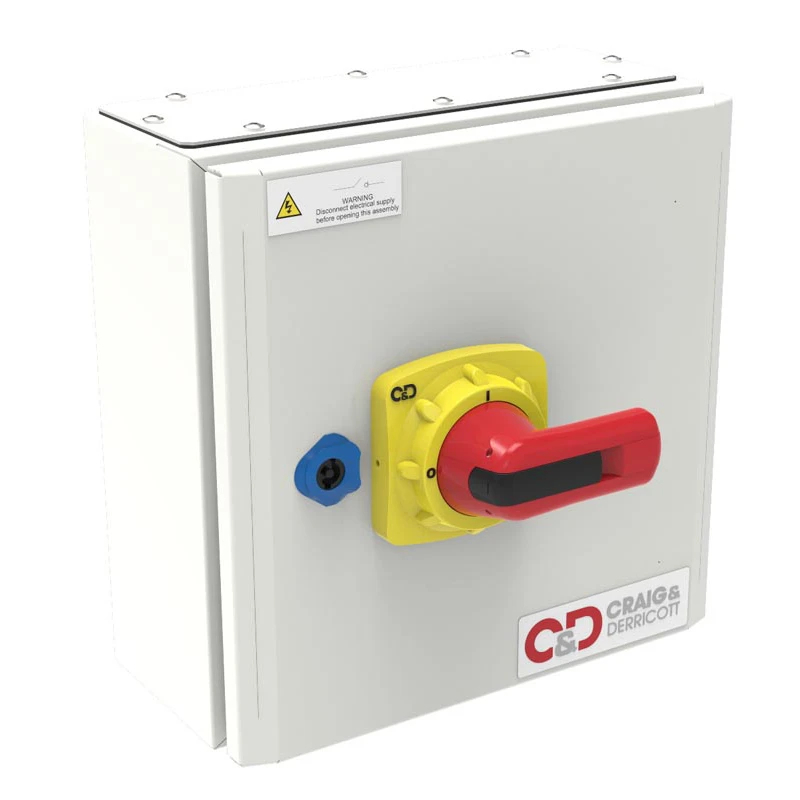

Craig & Derricott Switch Disconnect Isolator Triple Pole+Single Neutral 100A Grey Metal Hinged IP65
£462.08 Incl. VAT
Craig and Derricott i-Switch Switch Disconnector is made of powder coated sheet steel, switches mounted on a removable galvanised chassis plate. Provided with removable top and bottom gland plates. Padlockable handle which allow for the insertion of up to three padlocks in the ‘Off’ position thus preventing the isolator being switched to the ‘On’ position. The door interlock handle can be defeated to enable emergency opening or for testing purposes. · · · Made of powder coated sheet steel · · IP65 protection rating · · Padlockable handle which allows for the insertion of up to three padlocks · · The door interlock handle can be defeated to enable emergency opening or for testing purposes · · Provided with removable top and bottom gland plates
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Degree of protection (IP), front side IP65 Type of electrical connection of main circuit Screw connection Rated permanent current at AC-21, 400 V 100 A Type of control element Short thumb-grip Rated permanent current Iu 100 A Number of auxiliary contacts as normally closed contact 0 Number of poles 3 Rated operation power at AC-3, 400 V 30 kW Number of switches 1 Number of auxiliary contacts as change-over contact 0 Rated permanent current at AC-23, 400 V 100 A Rated short-time withstand current lcw 2.6 kA Max. rated operation voltage Ue AC 690 V Number of auxiliary contacts as normally open contact 0 Rated operating voltage 400 – 690 V
