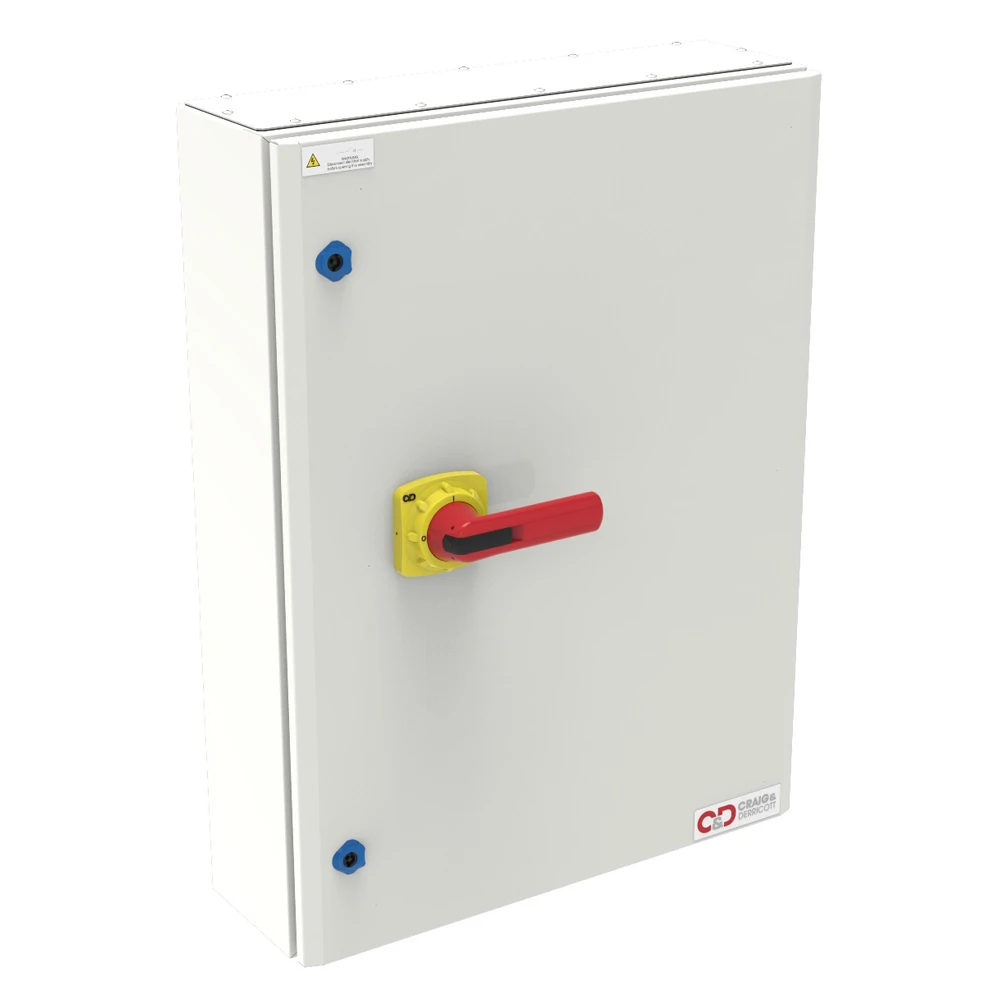

Craig & Derricott Switch Disconnect Isolator Triple Pole+Single Neutral 400A Grey Metal Hinged IP65
£1,052.16 Incl. VAT
Craig and Derricott i-Switch Switch Disconnector is made of powder coated sheet steel, switches mounted on a removable galvanised chassis plate. Provided with removable top and bottom gland plates. Padlockable handle which allow for the insertion of up to three padlocks in the ‘Off’ position thus preventing the isolator being switched to the ‘On’ position. The door interlock handle can be defeated to enable emergency opening or for testing purposes. · · · Made of powder coated sheet steel · · IP65 protection rating · · Padlockable handle which allows for the insertion of up to three padlocks · · The door interlock handle can be defeated to enable emergency opening or for testing purposes · · Provided with removable top and bottom gland plates
Description
Technical Specifications Technical Specifications Switch disconnector / isolator Type of electrical connection of main circuit Bolt connection Degree of protection (IP), front side IP65 Number of auxiliary contacts as normally closed contact 0 Type of control element Short thumb-grip Rated permanent current Iu 400 A Rated permanent current at AC-21, 400 V 400 A Rated operation power at AC-3, 400 V 200 kW Number of poles 3 Number of switches 1 Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally open contact 0 Rated short-time withstand current lcw 17 kA Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-23, 400 V 400 A Rated operating voltage 400 – 690 V
