Craig & Derricott Switch Disconnector Isolator 3 P 25A 11Kw Ac23 Red Die Cast Alu Si
Craig & Derricott Switch Disconnector Isolator 3 P 25A 11Kw Ac23 Red Die Cast Alu Si

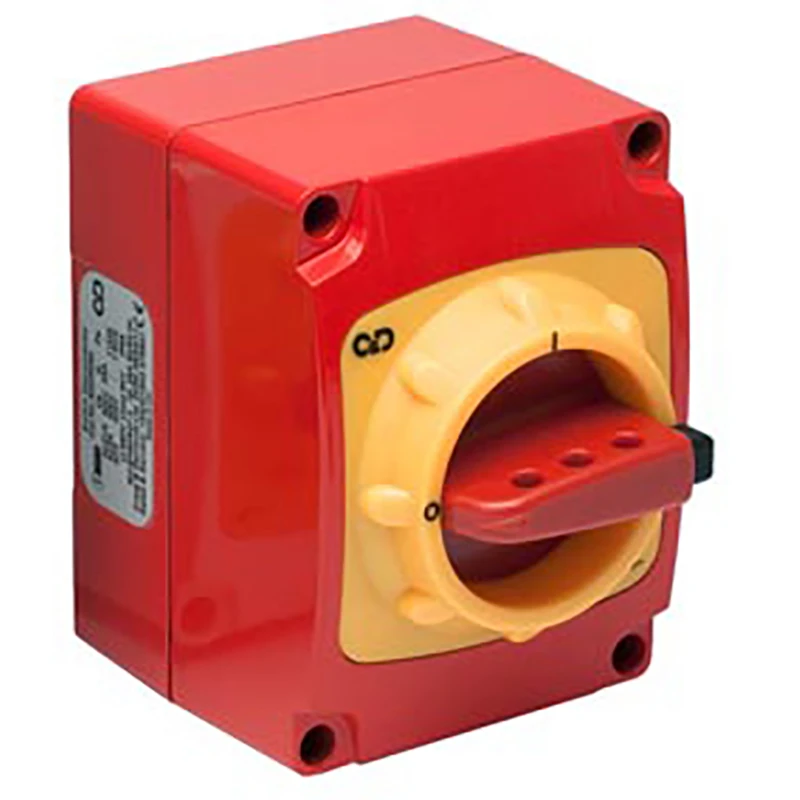

Craig & Derricott Switch Disconnector Isolator 3 P 25A 11Kw Ac23 Red Die Cast Alu Si - Image 2

Craig & Derricott Switch Disconnector Isolator 3 P 25A 11Kw Ac23 Red Die Cast Alu Si

£128.87 Incl. VAT

These units can be placed in environments where resistance to impacts, moisture and dust/dirt are a concern. The option to add a selection of auxiliary blocks providing additional contacts and a choice of neutral assemblies increases the flexibility of the product range. Compliant to IEC / BS EN 60947-3. · · · Quick install base mounted · · Insertion of up to three padlocks · · Sealing to IP66 · · Mechanical interlock preventing the enclosure lid from being removed · · 2 cable entries on bottom face · · Accepts add-on auxiliary blocks & neutrals · · Spacious enclosures for easy cable access · · 11kW AC23 (380/440V)

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SDDR253 Category: Brand: Product Code: 2500415963

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Degree of protection (IP), front side IP66 Type of electrical connection of main circuit Screw connection Type of control element Turn button Colour Grey Depth 126 mm Rated permanent current Iu 25 A Width 100 mm Number of poles 3 Switching power at 400 V 11 kW Height 135 mm Weight 990 g Rated operating voltage 440 V
