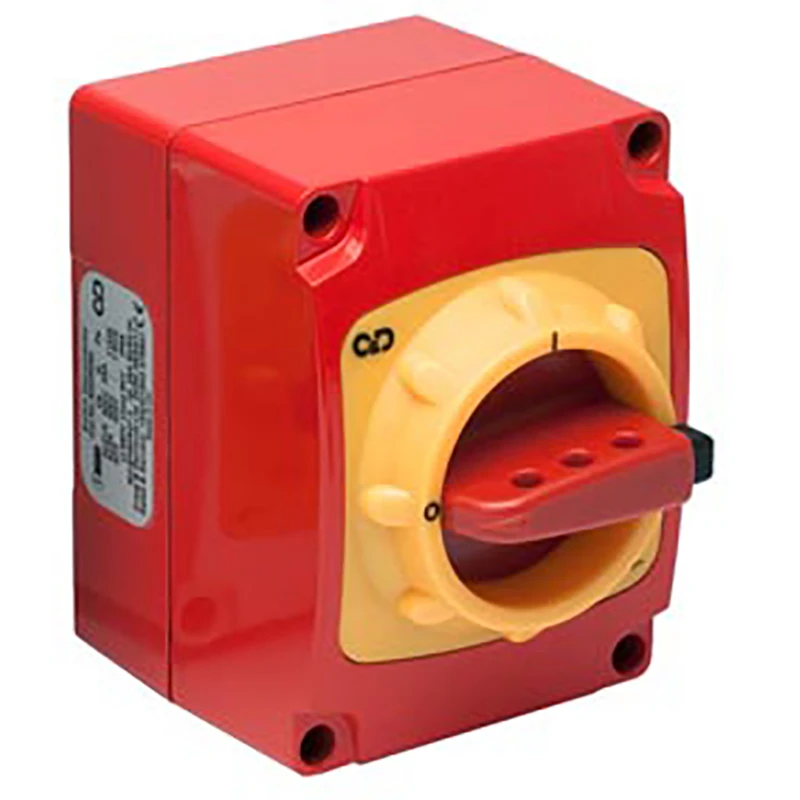

Craig & Derricott Switch Disconnector Isolator 3 Pole&Switched Neutral 25A 11Kw Ac23
Craig & Derricott Switch Disconnector Isolator 3 Pole&Switched Neutral 25A 11Kw Ac23
Craig & Derricott Switch Disconnector Isolator 3 Pole&Switched Neutral 25A 11Kw Ac23 - Image 2

Craig & Derricott Switch Disconnector Isolator 3 Pole&Switched Neutral 25A 11Kw Ac23

£135.77 Incl. VAT

These units can be placed in environments where resistance to impacts, moisture and dust/dirt are a concern. The option to add a selection of auxiliary blocks providing additional contacts and a choice of neutral assemblies increases the flexibility of the product range. Compliant to IEC / BS EN 60947-3. · · · Quick install base mounted · · Insertion of up to three padlocks · · Sealing to IP66 · · Mechanical interlock preventing the enclosure lid from being removed · · 2 cable entries on bottom face · · Accepts add-on auxiliary blocks & neutrals · · Spacious enclosures for easy cable access · · 11kW AC23 (380/440V)

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SDDR253N Category: Brand: Product Code: 2500415965

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Degree of protection (IP), front side IP66 Type of electrical connection of main circuit Screw connection Type of control element Turn button Colour Grey Depth 126 mm Rated permanent current Iu 25 A Width 100 mm Number of poles 3 Height 135 mm Weight 990 g
