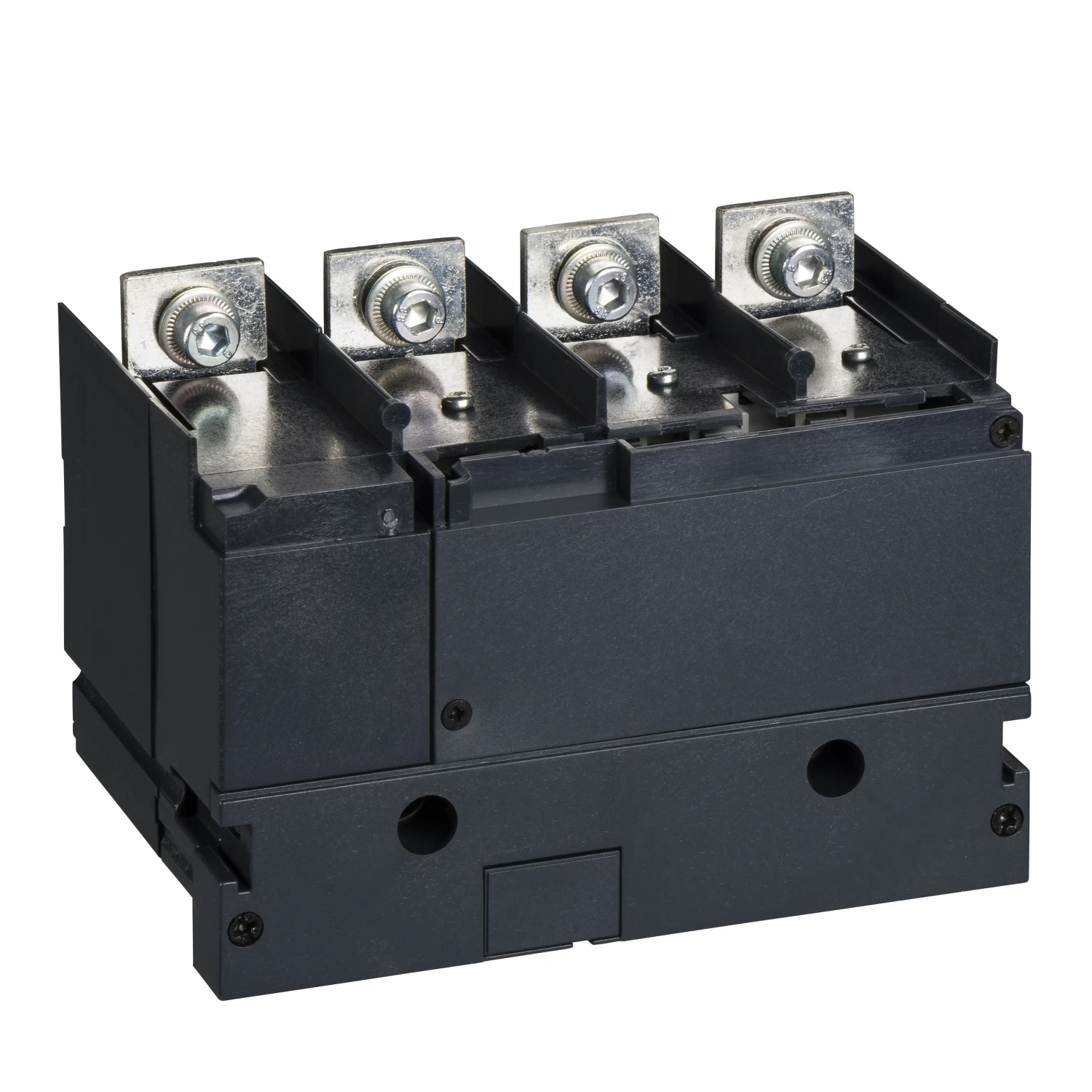

Current Transformer & Voltage Output Module Four Pole 125A

This is an additional current transformer module of 125A rating with voltage measurement output for 4 poles ComPact NSX 100/160/250 devices. This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. The module is installed directly on the downstream circuit breaker power terminals. The current rating is 125A and the operational voltage is 530 VAC 50/60 Hz. The current at the secondary winding is 5A. The power consumption is 1.1VA. The class accuracy is 1. There is a class II insulation level between the front face and the power circuits. The protection degree is IP40. · · · This is a current transformer module with voltage measurement output for 4 poles Compact NSX 100/160/250. · · This module enables direct connection of a digital measurement device such as a Power Meter PM700 or PM800. · · The current rating is 125A and the operational voltage is 530 VAC 50/60 Hz. · · The module is installed directly on the downstream circuit breaker terminals. · · The current at the secondary winding is 5A. · · The power consumption accuracy is class 1 for 1.1VA. · · There is a class II insulation level between the front face and the power circuits. · · The protection degree is IP40.
