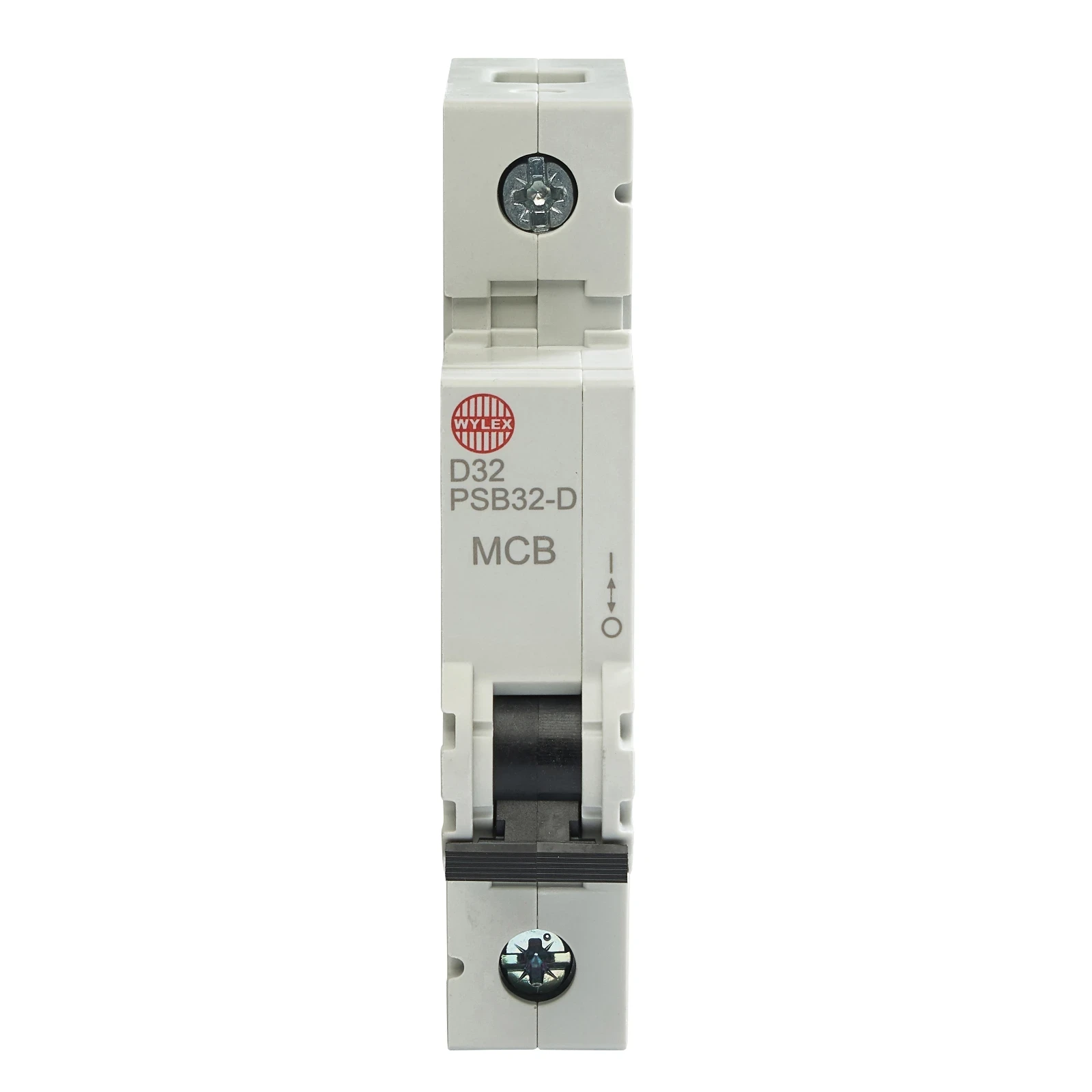

D32 10kA 1P MCB (1MW)
D32 10kA 1P MCB (1MW)
D32 10kA 1P MCB (1MW) - Image 2
D32 10kA 1P MCB (1MW) - Image 3

D32 10kA 1P MCB (1MW)

£8.72 Incl. VAT

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level · · · D curve trip characteristic (10-20In) · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Triple pole MCB · · Number of Poles: Single Pole · · Energy limiting Class 3 · · Suitable for use within NH Distribution Board · · Voltage Rating: 230 – 400V AC

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: PSB32-D Categories: , , Brand: Part Number: 2500041034

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Current limiting class 3 Over voltage category 3 Rated voltage 230 V Rated insulation voltage Ui 400 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Width in number of modular spacings 1 Number of protected poles 1 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of poles (total) 1 Rated current 32 A Rated impulse-withstand voltage (Uimp) 4 kV Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
