Dado Trunking Built Up 3Compartment Curved 180 x 57mm x 3m White
Dado Trunking Built Up 3Compartment Curved 180 x 57mm x 3m White
Dado Trunking Built Up 3Compartment Curved 180 x 57mm x 3m White - Image 2
Dado Trunking Built Up 3Compartment Curved 180 x 57mm x 3m White - Image 3
Dado Trunking Built Up 3Compartment Curved 180 x 57mm x 3m White - Image 4

Dado Trunking Built Up 3Compartment Curved 180 x 57mm x 3m White

£81.32 Incl. VAT

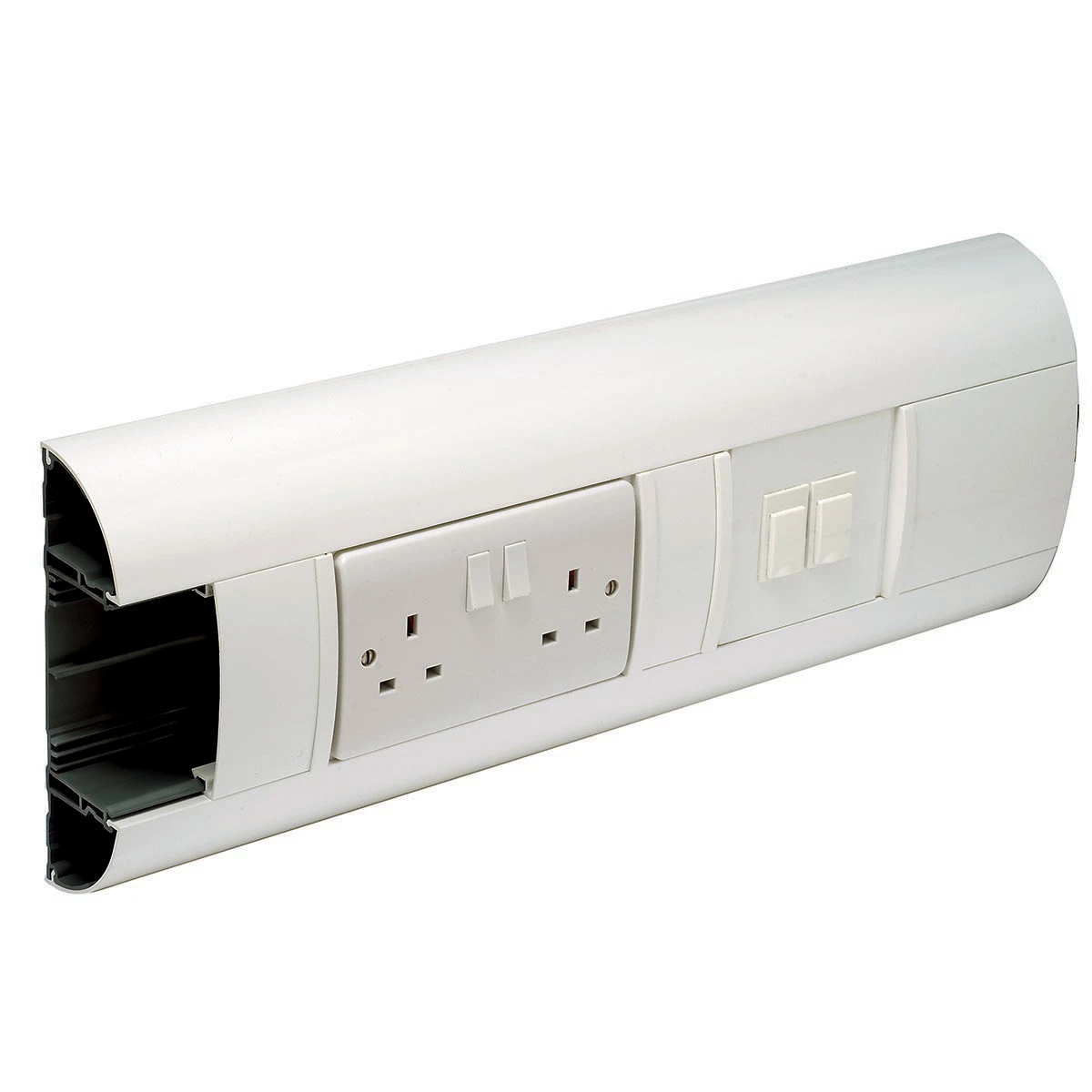

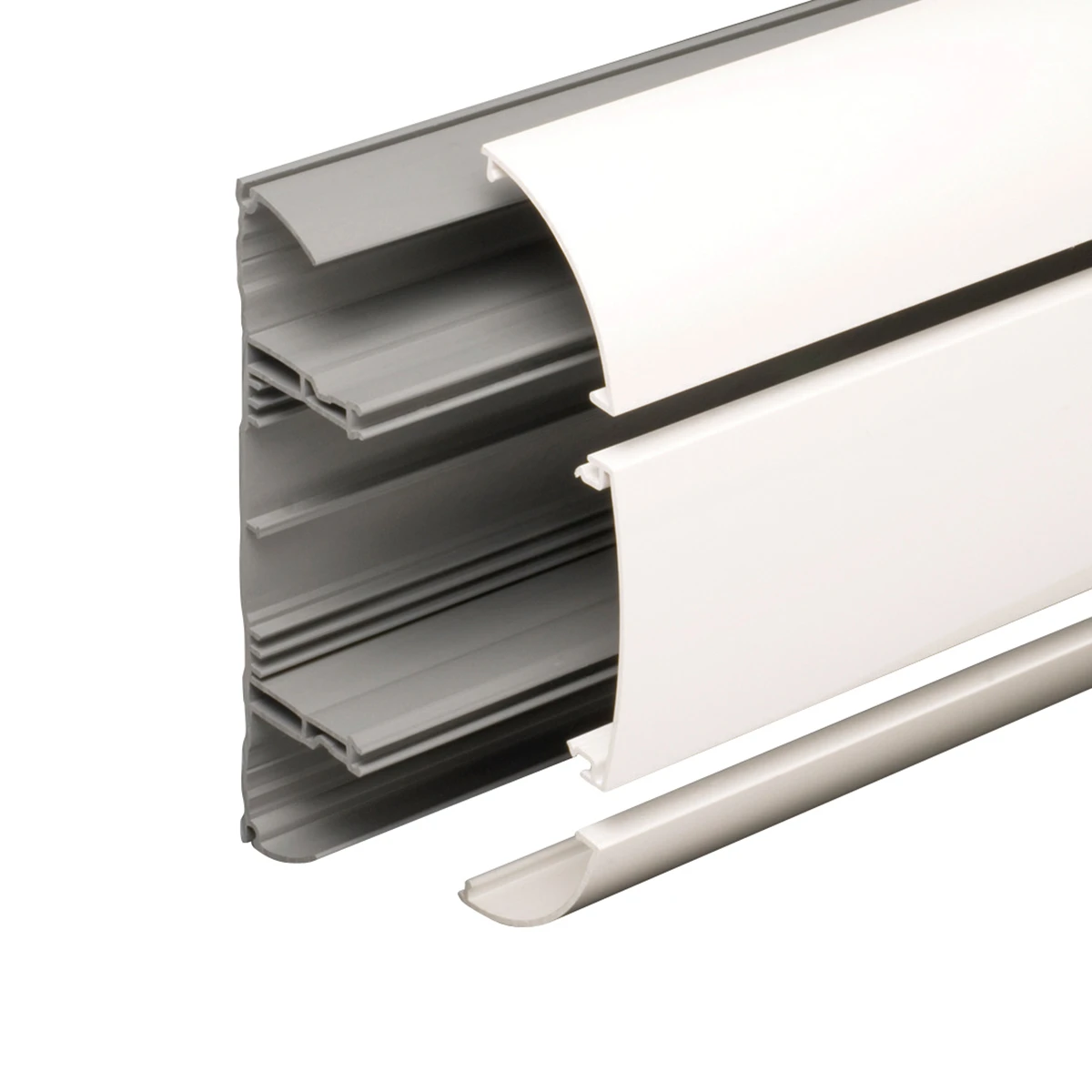

Odyssey Trunking Assembly is manufactured from uPVC. The Odyssey is a 3-compartment trunking system with a completely curved front profile, designed with tamper-resistant covers and fittings with flush accessories to enhance the finished appearance. Odyss · · · Can be sub-divided · · Suitable for dado application · · Flush fitting accessories · · Tamper resistant covers and fittings · · Can be screened against EMI with no reduction in cable capacity · · 1 Main compartment and 2 smaller outer compartments · · Standard bend radius 25mm · · Adjustable data box 32 to 40mm · · Manufactured using 62% recycled material

8 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: DD1WH Categories: , , Brand: Part Number: 2500201832

Description

Technical Specifications  Technical Specifications Wall duct Number of covers 3 Width 180 mm Useful cross section – mm² Number of plug-in partitions – Length 3000 mm RAL number 9003 Working temperature -5 – 60 °C Depth 57 mm Halogen free No With duct connector No Construction type rectangular No Covers supplied with the product Yes Antibacterial treatment Yes Mounting perforation in base No Symmetric Yes Protection film No With cable fixing clip No · Technical Data Sheet – Click to Download
