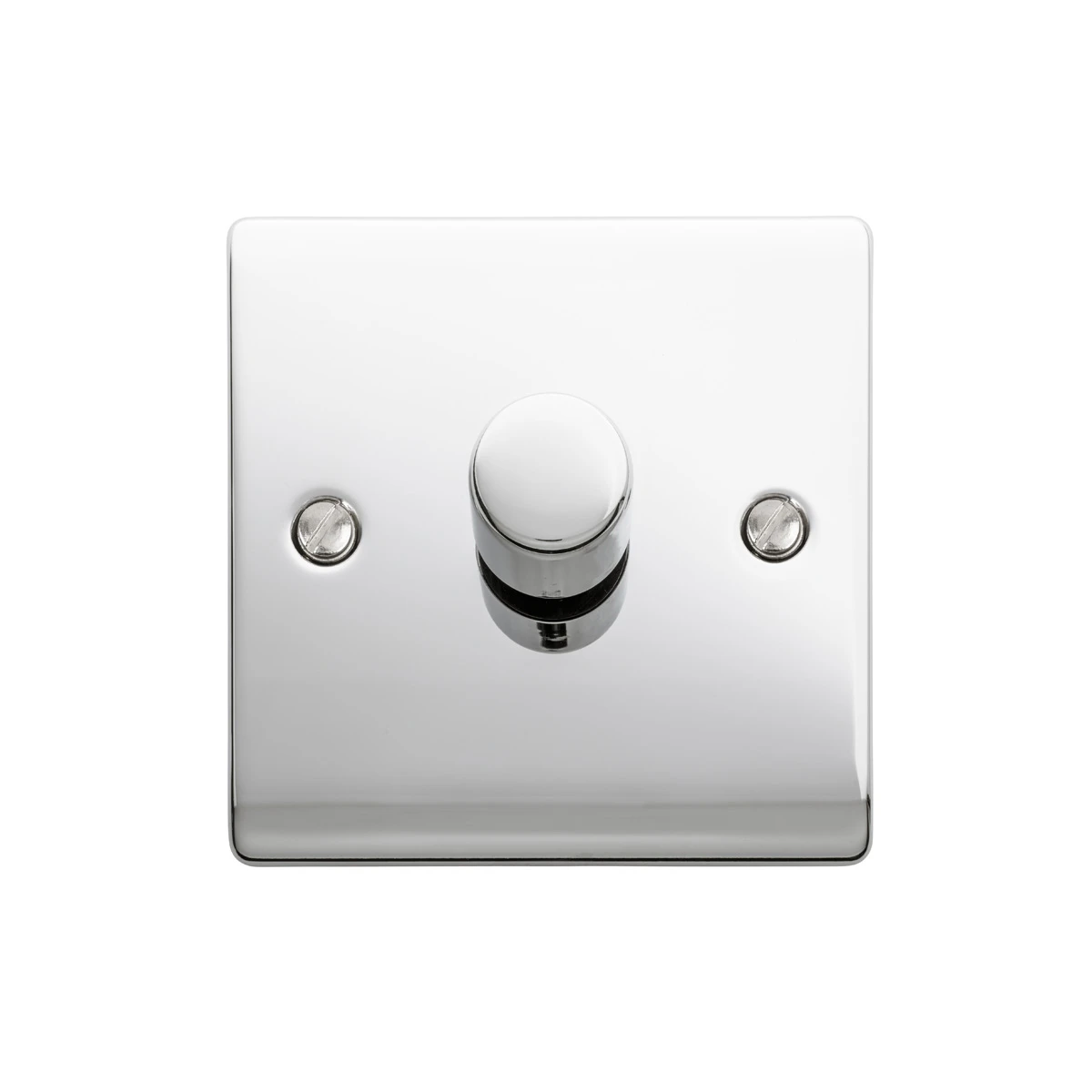

Designa 22DIM4001 1 Gang 2 Way 400W Push Dimmer Switch Polished Chrome
£20.42 Incl. VAT
A high quality stylish and slim 1 Gang 2 Way 400W Push Dimmer Switch in polished chrome with colour matching screws. The controls are positive with just a gentle push and turn control that memorises the dimmer position when the knob is pushed to off and back to on again. The Curve decorative range offers an affordable decorative range at outstanding value, coming in four stunning finishes; satin steel, polished chrome, black nickel and graphite. · · · Slim 5.5mm raised curve profile design to suit any application · · High quality steel plated polished chrome finish · · Tested and certified by ASTA:BEAB, Intertek and HKSTC · · Designed to fit UK standard 1 Gang accessory boxes · · Supplied with M3.5x25mm fixing screws · · Hidden fixing screws to give a modern elegant apperance · · Supplied with colour matching screws · · The control memorises the dimmer position when the knob is pushed to off and back to on again · · Inductive loads – de-rate by 2% (when dimming LV resistive loads, transformers must always be suitable for dimming) · · Suitable for Mains & Low Voltage Lighting
Out of stock
Description
Technical Specifications Technical Specifications Dimmer Type of fastening Mounting with screw Connection type Screwed terminal Mounting method Flush mounted Surface protection Decor Material Metal Assembly Basic unit with full cover plate Method of operation Turn/push button Colour Chrome Width of device 86 mm Depth of device 48.6 mm Number of module spaces (modular system) 1 Height of device 86 mm Nominal power 400 VA
