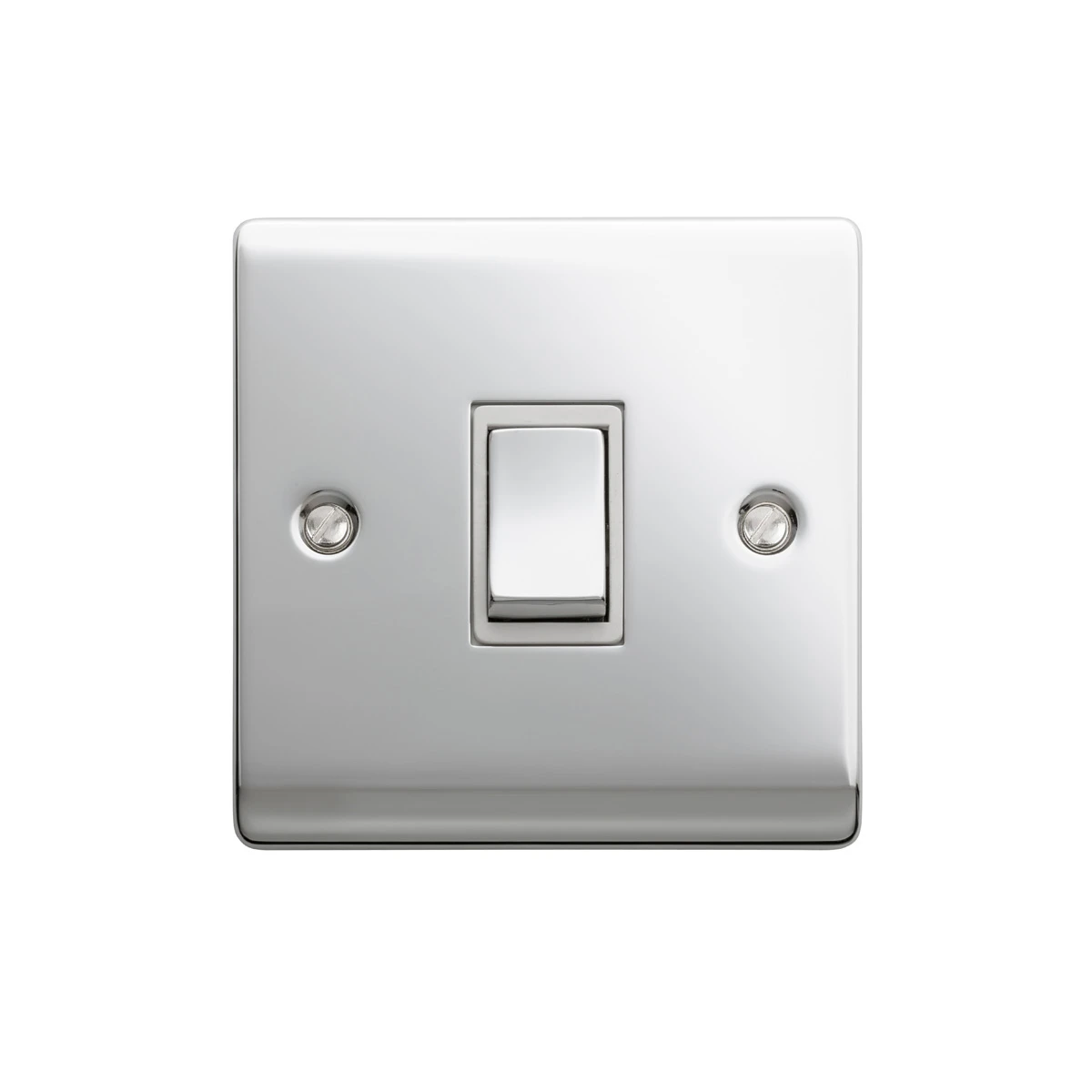

Designa 22S512 1 Gang 2 Way 10AX Plate Switch Polished Chrome With White Insert
£6.89 Incl. VAT
A high quality stylish and slim 1 Gang 2 Way 10AX Plate Switch Polished Chrome With White Insert. Our extensive range of wall light switches are all 10AX rated as standard ensuring that they are suitable for commercial as well as domestic applications. The Curve decorative range offers an affordable decorative range at outstanding value, coming in four stunning finishes; satin steel, polished chrome, black nickel and graphite. · · · Slim 5.5mm raised curve profile design to suit any application · · High quality steel plated polished chrome finish · · Tested and certified by ASTA:BEAB, Intertek and HKSTC · · Designed to fit UK standard 1 Gang accessory boxes · · Supplied with M3.5x25mm fixing screws · · Colour codes terminals and backed out and captivated screws for fast installation · · Clearly marked terminals for ease of identification · · Two way switches can be wired as one or two way · · Suitable for switching circuit of lighting totalling no more than 1 amps · · Switch a range and combination of light sources such as halogen, cfl, incandescent and LED
316 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Switch Type of fastening Screw mounting Method of operation Rocker Mounting method Surface mounted Surface finish Glossy Material Metal Wiring system Two-way switch Surface protection Decor Colour Chrome Rated current 10 A Number of module spaces (modular system) 1 Depth of device 22.4 mm Width of device 86 mm Height of device 86 mm
